How to Choose a Suitable Quartz Sand Beneficiation Production Line?

01Clarify the demand for quartz sand beneficiation

We determine the demand for quartz sand beneficiation from three aspects: purpose, product requirements and raw material characteristics

1. Purpose: For different purposes, the purity, particle size and impurity content of quartz sand are also different. Quartz sand for glass requires higher purity and finer particle size, and casting sand has wider particle size requirements, but higher requirements for removing impurities.

2. Output requirements: Determine the production volume according to the production scale of the beneficiation plant, and determine the daily or monthly processing volume in advance to ensure that the production line can meet the needs of daily production, avoid the processing capacity of the production line being too large or too small, and affect cost investment and production efficiency.

3. Raw material characteristics: The particle size distribution, impurity type, content and chemical composition of different quartz sands will directly affect the design of the beneficiation process and the selection of equipment. When there are more soil or iron impurities in the quartz sand, different processing processes and equipment need to be selected. Therefore, analyzing the characteristics of the raw materials in advance will help to reasonably plan the design of the beneficiation process and equipment configuration.

02Quartz sand processing flow design

Reasonable quartz sand beneficiation process plays an important role in improving quartz sand recovery rate, reducing operating costs and reducing energy consumption.

1. Crushing and screening: The selection of crushing equipment depends on the particle size of raw quartz sand. Jaw crusher can be used for preliminary crushing of coarse raw materials, and cone crusher is used for secondary crushing of medium and fine particles. Screening equipment can separate sand and gravel of different particle sizes. Common screening equipment includes vibrating screen and drum screen.

2. Ore washing and desludging: Since quartz sand contains a certain proportion of mud and fine impurities, these materials will affect the quality of the final product and subsequent processing steps. Ore washing and desludging steps become necessary steps in the ore dressing production line. When the mud content in the raw ore is high, a sand washer is configured for cleaning. Desludging equipment can be used to remove fine mud and mineral impurities. Common ore washing equipment includes spiral ore washers and trough ore washers.

3. Magnetic separation and flotation: When the iron impurity content in quartz sand is high, magnetic separation process is an important means of iron removal. Choosing a suitable magnetic separator can efficiently remove iron impurities while ensuring the purity of quartz sand. When the impurity minerals in quartz sand are non-ferrous impurities such as mica and feldspar, you can choose to use flotation process to remove them.

4. Pickling and drying: When high-purity quartz sand is required, further impurity removal steps are required, and pickling process is often required. The pickling process can remove metal oxides, iron impurities, etc. attached to the surface of quartz sand. The product after pickling needs to be dried to ensure the dryness of the quartz sand.

03Selection of quartz sand beneficiation equipment

When selecting quartz sand beneficiation equipment, you can consider three aspects: equipment quality, automation, and energy consumption and environmental protection.

1. Equipment quality: High-quality equipment can improve the working efficiency of the overall production line, extend the service life of the equipment, and reduce the equipment failure rate. The brand and quality of the equipment are the primary factors to consider when selecting equipment. Choosing a well-known brand or a verified equipment supplier can ensure the reliability, durability and performance stability of the equipment.

2. Automation: Equipment with high automation can not only improve production efficiency, but also reduce labor costs and operating risks. The automated control system can also monitor the status of the production line in real time, reduce manual intervention, and improve the safety and stability of production.

3. Energy consumption and environmental protection: Modern beneficiation production lines require not only efficient production, but also reduced energy consumption and environmental protection. Choosing energy-saving and environmentally friendly equipment can reduce production costs and reduce pollution to the environment.

04Investment budget for quartz sand beneficiation production line

The investment budget for quartz sand beneficiation production line considers two aspects: initial investment and operating costs.

1. Initial investment: mainly includes equipment purchase, installation and commissioning, and infrastructure costs. Choose appropriate equipment configuration according to the budget to avoid over-investment or insufficient equipment. Initial investment also needs to take into account production needs and long-term operating costs.

2. Operating costs: Operating costs are the key factors that affect the economic efficiency of the beneficiation production line in the long term. Operating costs need to include equipment maintenance costs, energy costs, labor costs, etc. Choosing equipment with low energy consumption and simple maintenance can effectively reduce operating costs. Equipment with a high degree of automation can also reduce labor costs and manual intervention in long-term operations and improve production efficiency.

05Quartz sand beneficiation production line supplier selection

It is very important to choose a supplier with strong technical support and perfect after-sales service. Xinhai Mining, with its professional technical team and service team, can provide comprehensive technical support and fast-response after-sales service to ensure the stable operation of the production line.

Xinhai Mining Equipment's equipment and technology have been verified in multiple quartz sand beneficiation projects, helping customers improve production efficiency and product quality, reduce costs, and meet environmental protection requirements.

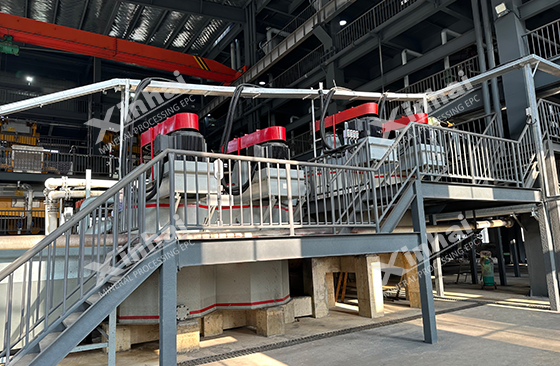

Hunan 800TPD Quartz Sand Processing Project

By clarifying the needs, carefully designing the process, selecting the right equipment and suppliers, and conducting on-site inspections and trial runs, you can choose the quartz sand beneficiation production line that best suits your needs. An efficient, energy-saving and safe production line can not only improve production efficiency, but also reduce operating costs and ensure product quality, thereby creating greater economic benefits for the company. Xinhai Mining EPCM+O service can provide you with efficient and high-quality quartz sand beneficiation production lines to help the development of beneficiation plants.
