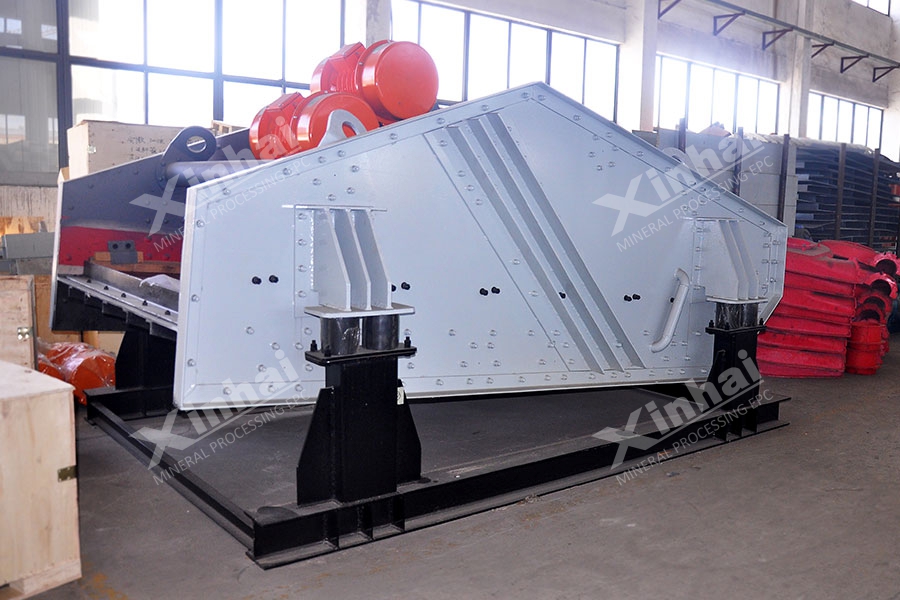

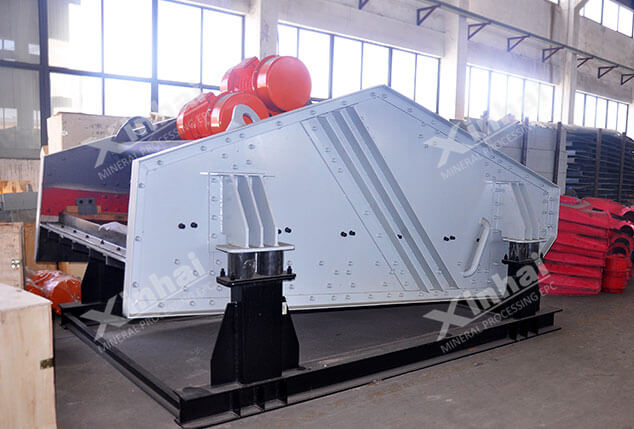

High Frequency Dewatering Screen

High-Frequency Dewatering Screen

[Introduction]: A multifrequency dewatering screen with large capacity and full dehydration.

[Capacity]: ≤250t/h

[Improvement]: The high-frequency dewatering screen adopts a method of drilling holes on the side of the sieve plate, allowing part of the water to flow out of the hole quickly, speeding up the dehydration speed, and also avoiding the damage caused by water splashing on the motor.

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

PRODUCT STRUCTURE

High Frequency Dewatering Screen principle PRODUCT STRUCTURE Processing

The product adopts a double vibration motor as a power supply: The two motors that rotate synchronously and reversely and centrifugal force is produced by two groups of eccentric block. This makes the screen body periodical to-and-fro moving along the direction of a straight line, which is for dehydration. The screen frame is connected by high-intensity bolts, so the structure is stable and durable.

TECHNICAL PARAMETERS

ModelMin. 30% Solid Feeding Slurry Concentration by    VolumeUnit Motor Power (kW) X Quantity (set)
Coal Fine Theoretically -0.5+0.1(mm) Specific    Gravity 1.5Coarse Sand Approxilly- 5(mm) 100%, -0.6(mm)50%,    Specific Gravity 2.7Fine Sand 90% -1(mm) Specific Gravity 2.7980 (r/min)1460 (r/min)
1460 (r/min)980 (r/min)1460 (r/min)980 (r/min)1460 (r/min)980 (r/min)
VD66~810 ~1314281021 2 X2
VD99~1215 ~20214216323X2
VD1215 ~1924 ~30336725502.6X24X2
VD1530 ~3550 ~606312547942.4X42.25X4
VD1835~4560 ~807715357115 3.7X4
VD21—85~100—225—16415—
VD2495~110250190
