Home > Products > Thickening > Efficient Deep Cone Thickener

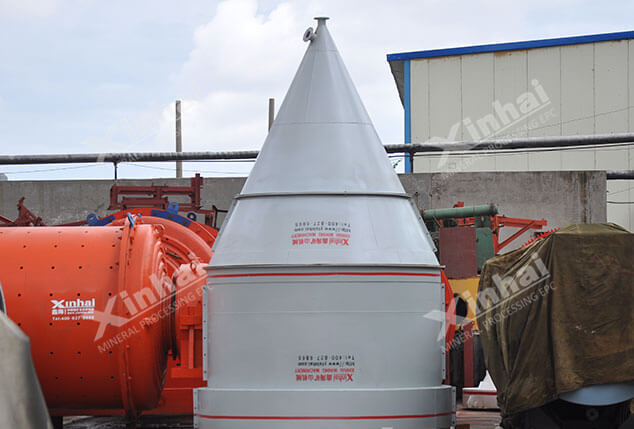

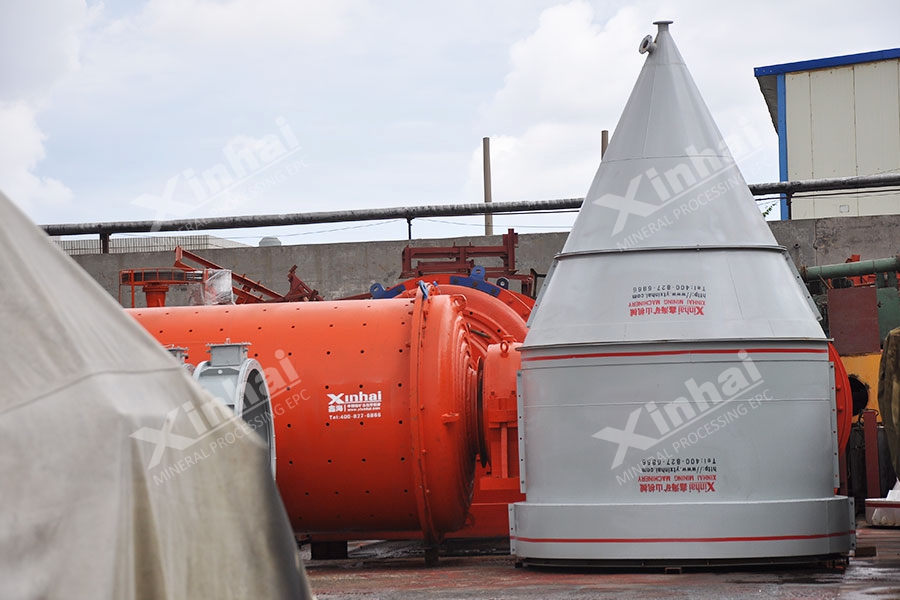

Efficient Deep Cone Thickener

[Introduction]: A independently developed deep cone thickener, the underflow concentration up to 70%.

[Capacity]: 60～2600m³/h

[Improvement]: Large angle cone, high underflow concentration

CHAT

MESSAGE

ADVANTAGES
PRODUCT STRUCTURE
TECHNICAL PARAMETERS
SUCCESSFUL CASE
RELATED PRODUCTS
RELATED NEWS

ADVANTAGES

Small floor space, large capacity;
Slender body, flocculants are added in the process of concentrate; accelerate the particle settlement and dewatering process;
Reasonable structure, low energy consumption, high efficiency and low operation and maintenance cost.

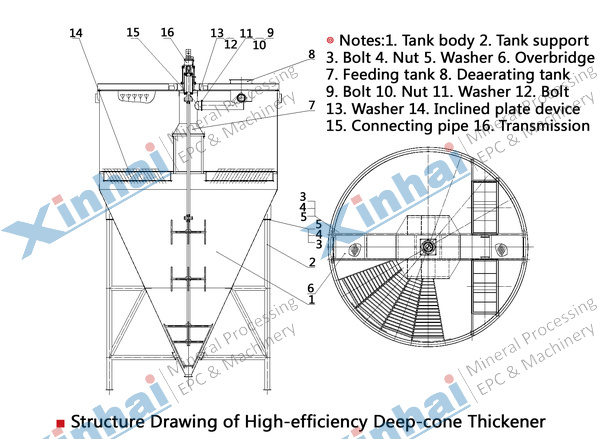

PRODUCT STRUCTURE

Deep cone thickener also called paste thickener is higher than other thickeners which consist of deep cone, feeding device, stirring device, control box, reagents adding device, automatic control system, etc.

Efficient deep cone thickener is mainly applied in the thickening of minerals or other fine materials.

TECHNICAL PARAMETERS

Motor	Tank Diameter(mm)	Tank depth (mm)	Sedimentation Area(m²)	Capacity (m³/h)
GSNG-3	3000	4404	21	60-70
GSNG-6	6000	8810	85	210-260
GSNG-9	9000	13500	310	570-700
GSNG-12	12000	17500	510	800-1200
GSNG-15	15000	19000	1200	1000-1500
GSNG-18	18000	22000	2000	1400-2100
GSNG-20	20000	22800	2700	2100-2600

SUCCESSFUL CASE

Inner Mongolia 990,000 tpa Lead-zinc Mineral Processing Plant
