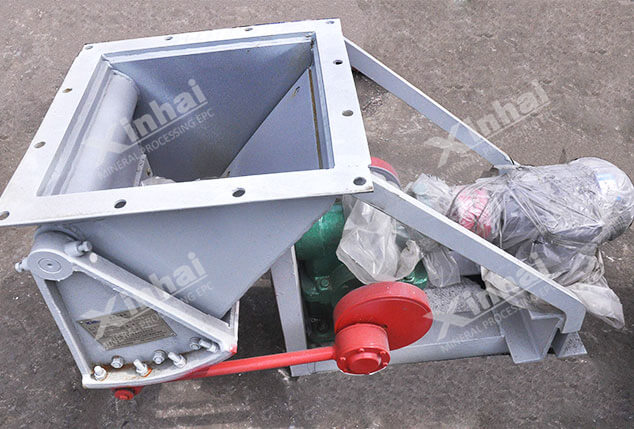

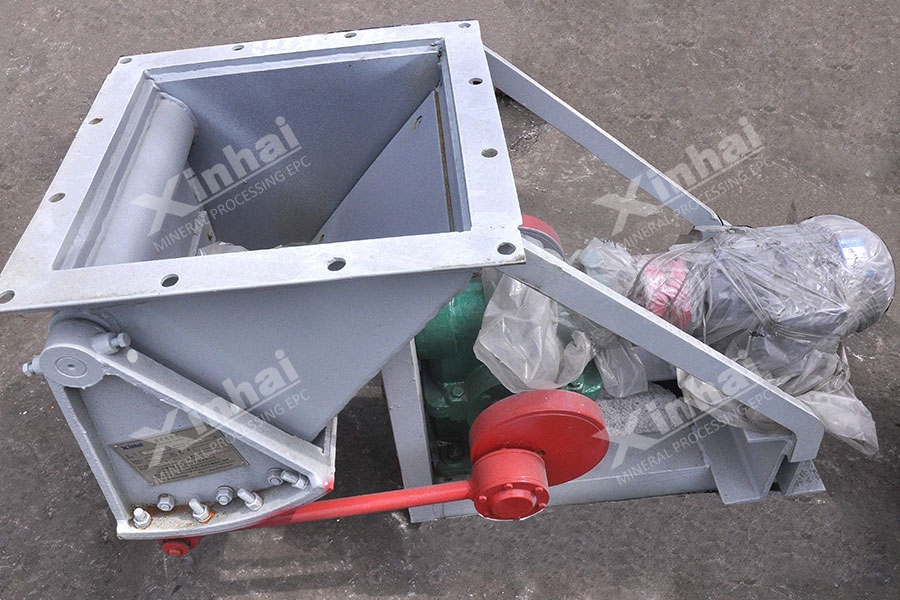

Pendulum Feeder

Pendulum Feeder

[Introduction]: A feeder with periodic reciprocating motion for fine particles

[Capacity]: 4.5~25t/h

[Improvement]: Adopt the worm gear reducer, compact structure, and equipped with reliable sealing device.

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

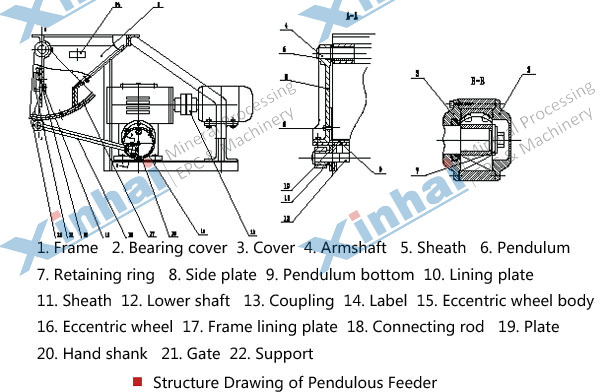

PRODUCT STRUCTURE

Pendulum Feeder principle PRODUCT STRUCTURE Processing

The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works, via coupler, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So, the mineral feeding process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.

TECHNICAL PARAMETERS

ModelInlet
 (LXW)
 (mm)		Outlet
 (LXW)
 (mm)		Stroke of Eccentric Wheel (mm)Frequency
 (n/min)		Max.    Feed Size (mm)Feed
 Capacity
 (t/h)		Motor
 Model		Motor
 Power
 (kW)		Rotating Speed of Motor (r/min)Weight
 (kg)
BG250X250250X250250 X (30~125)0~9046254.5Y80L-40.551390130
BG300X300300 X300300 X (30~125)46306.5Y802-40.751390272
BG400X400400 X400400 X (50~130)0~17045.53512Y90S-41.11410558
BG600X600600 X600600 X (50~150)0 ~157485040 ~80Y100L-41.5940613
