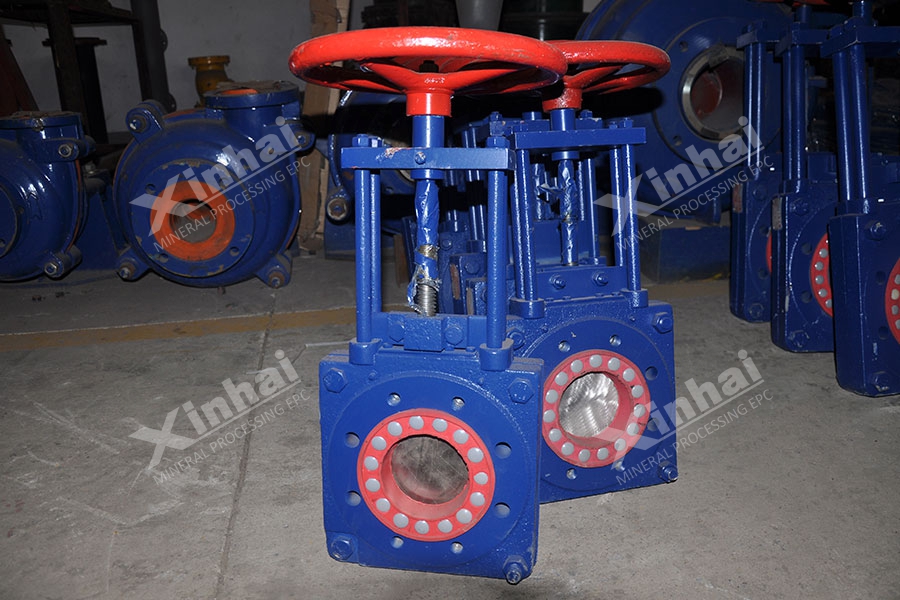

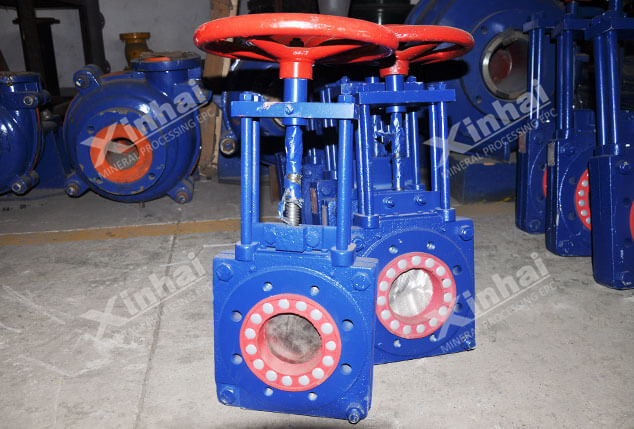

Knife Gate Valve

Knife Gate Valve

[Introduction]: A Knife Gate Valve made of wear-resistant rubber is developed by international advanced technoloy.

[Capacity]: 1.6MPa/cm²

[Improvement]: High resilience of rubber liners of valve, tight combination between gate valve and disc, guarantee the sealing.

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

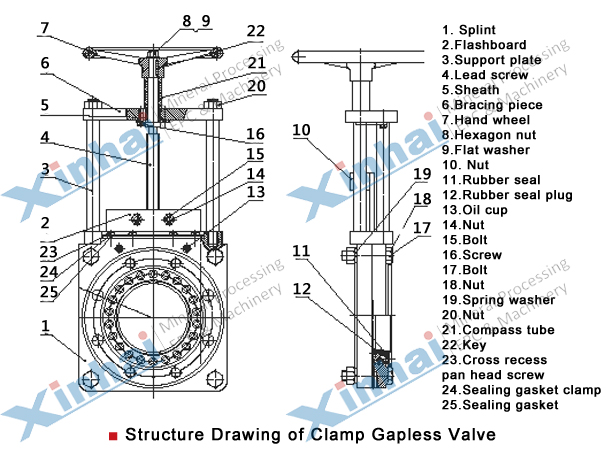

PRODUCT STRUCTURE

Knife Gate Valve principle PRODUCT STRUCTURE Processing

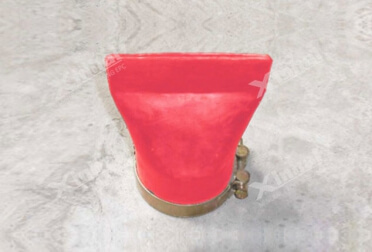

Xinhai knife gate valve is mainly a manual gate valve. Xinhai Mining can also manufacture the electric and pneumatic gate valve according to the needing of customers. Three kinds of gate valve can be carried out by the remote control. In addition, the valve body is fitted with oil nipple to reduce the friction on gate and force moment of opening and closing of the valve. Spool made of the wear–resistant rubber, has the small specific gravity, is easier to replace.

TECHNICAL PARAMETERS

Performance of Xinhai motorized knife gate valve of series XWXZF/D-1.6

DNPressure(Mpa)Motor of electric deviceMax torque (N•m)Motor Power(KW)
501.6DZ101000.25
651.6DZ101000.25
801.6DZ101000.25
1001.6DZ102000.37
1251.6DZ102000.37

XWXZF/D-1.6 Structure and dimension of Xinhai motorized knife gate valve

DNADD1D2n-ΦdBHH1
5060165125944-Φ1818054690
65601851451124-Φ18200565100
80642001601268-Φ18220580110
100642201801508-Φ18240610120
125702502101788-Φ18270640135
