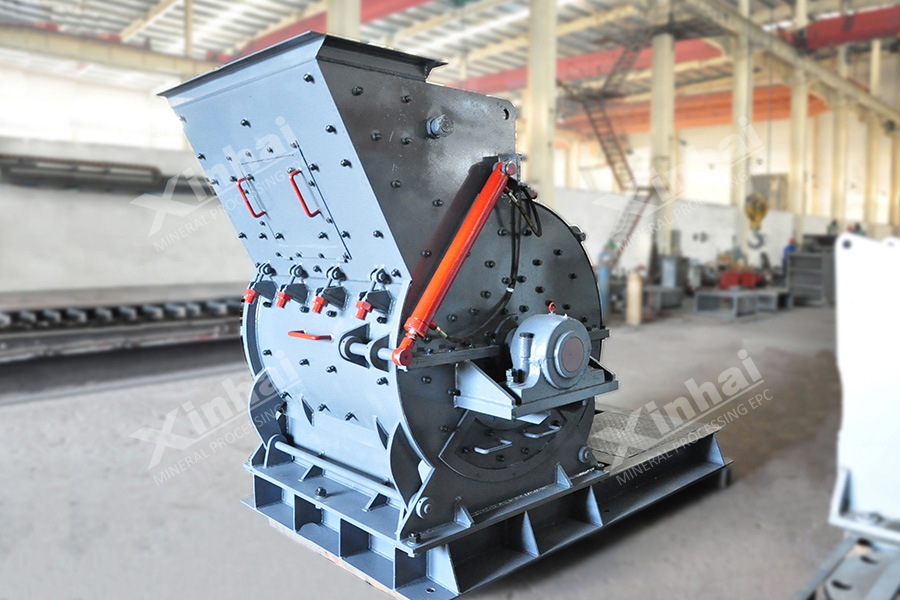

Hammer Crusher

[Introduction]: Hammer crusher is a kind of crushing equipment with with high production capacity, large reduction ratio and high crushing efficiency.

[Capacity]: 5～75t/h

[Improvement]: High-speed hammer impacts materials to crush materials. There are two ways of crushing (Wet and dry)

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

PRODUCT STRUCTURE

hammer crusher principle PRODUCT STRUCTURE Processing

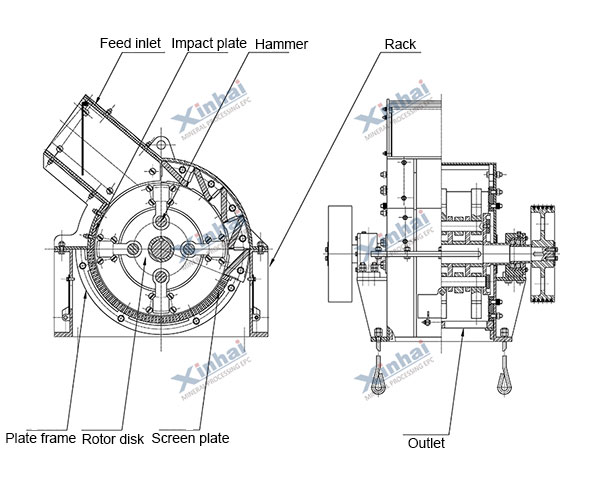

Hammer Crusher is composed of rack, rotor, sieve bar, hammer, etc. Motor drives rotor through transmission belt, and materials are crushed due to the collision between hammer and materials produced by the rotation of rotor.

TECHNICAL PARAMETERS

ModelRotation Diameter (mm)Discharge Size (mm)Max. Feed Size (mm)Capacity (t/h)Power (kW)
PC-φ600X400φ60010 〜3010012 〜1518.5
PC-φ600X600φ60010 〜3010012 〜1830
PC-φ800X700φ80010 〜4520013 〜3537
PC-φ800X800φ80010 〜4520013 〜4037
PC-φ1000X1000φ10008〜6030030 〜8055
PC-φ1000X1300φ10008〜6020035〜100110
PC-φ1000X1500φ10008〜6030040〜100132
PC-φ1200X1600φ120010 〜70500100〜250160
