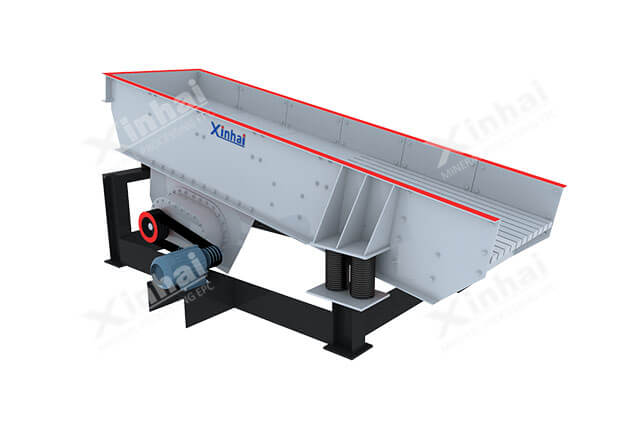

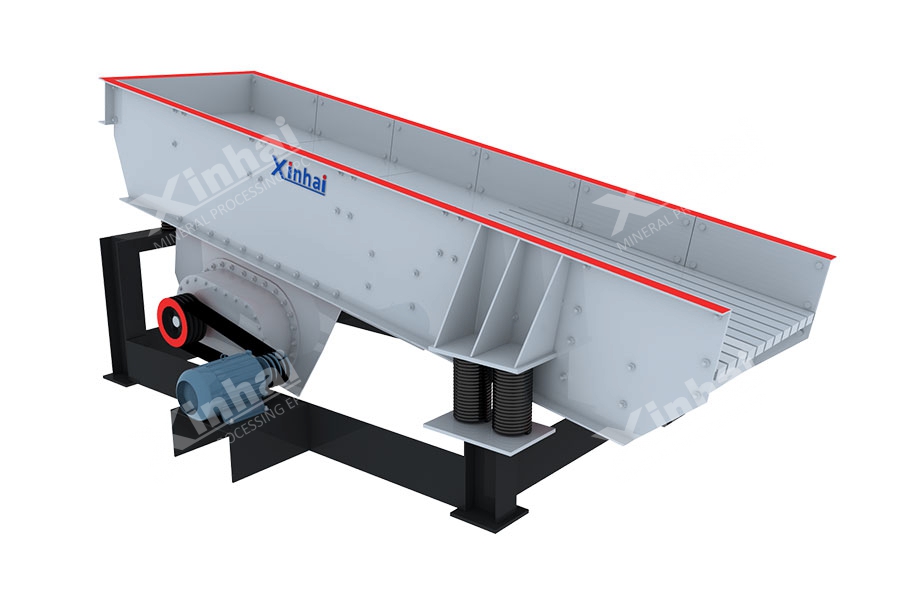

ZSW Vibrating Feeder

ZSW Vibrating Feeder

[Introduction]: A mechanical vibrating feeding equipment with rough screening function

[Capacity]: 96~560t/h

[Improvement]: 1, Baseboard of feeding tank adopts “Blind plate + screen” to pre-screen the small block materials 2, Double eccentric shaft vibrator

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

PRODUCT STRUCTURE

ZSW Vibrating Feeder principle PRODUCT STRUCTURE Processing

The vibration exciter is composed of two eccentric shafts with particular position. The large linear vibration force produced by motor and the rotation of two eccentric shafts vibrates the machine. The materials are sliding and thrown so that they could move on. When the materials pass the screen bars, the small ore falls through the clearance of screen bars.

TECHNICAL PARAMETERS

ModelTank Dimensions (mm)Max. Feed Size (mm)Feed Capacity (t/h)Rotating    Speed of Eccentric Shaft (r/min)Motor Power
 (kW)		Weight
 (kg)
ZSW380X953800X95050096~160800114082
ZSW420X1104200X1100500110~180800154149
ZSW490X1104900X1100500115~192800154263
ZSW590X1105900X1100630350~500800226130
ZSW600X1306000X1300750400~5608007800
