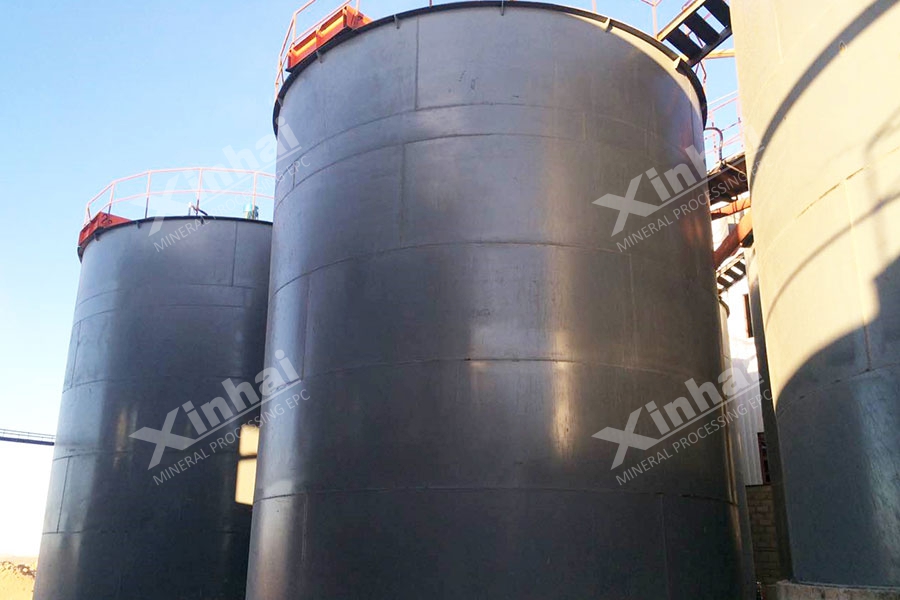

Leaching Agitation Tank

Leaching Agitation Tank

[Introduction]: Leaching agitation tank is a leaching equipment for cyanide leaching by referring to the USA technical design.

[Capacity]: 6-395m³

[Improvement]: Leaching agitation tank for gold extraction is improved with double impeller, uniform mixing, low energy consumption; the impeller coated by rubber, long service life; multi points to supply with the gas, uniform inflation.

ADVANTAGES

PRODUCT STRUCTURE

With dual impellers rotating and agitating, ore pulps move downward and then diffuse along with the damping plate. Air is fed in the tank from the lower end of the shaft and blended with ore pulps to form a uniform suspending mixed liquid.

In the gold cyaniding process, a leaching agitation tank is applied to leach and carbon-absorb ore pulps whose fineness is -200 meshes and whose density is less than 45%. Under similar circumstances, it is also applied to agitation and leaching in metallurgy, chemical, and light industry.

TECHNICAL PARAMETERS

ModelTank Spec.
 (DX H) (mm)
Effective
 Volume
 (m3)
Rotating Speed of Impeller (r/min)Diameter of Impeller (mm)Motor
 Model
Motor
 Power
 (kW)
Reducer ModelTank
 Weight
 (kg)
Total
 Weight
 (kg)
SJ2.0X2.52000X25007.0752909Y100L1-42.2XLD2.2-4-2916092144
SJ2.5X2.52500X250010.843935Y112M-44XLD4-5-3521592729
SJ2.5X3.152500X315013.9252935Y100L1-42.2XLD2.2-4-2923983095
SJ3.0X3.03000X300019431130Y112M-44XLD4-5-3534804583
SJ3X3.153000X31502034804160.6
SJ3X3.53000X350022.9732114334.6
SJ3.15X3.553150X355025.7312603433.54322.8
SJ3.5X3.53500X350031.3521310Y132S-45.5XLD5.5-5-2934805025
SJ3.5X43500X400035.642305429
SJ3.55X4.03550X400036.8434XLD4-5-3542605025
SJ3.7X4.23700X42004242Y112M-4XLD4-5-4352666153
SJ4.0X4.54000 X450052.78351750Y132M-47.5XLD7.5-7-4363977569
SJ4.0X64000 X600071331750Y160M-411GRF137-Y11-4P-44.65-M476819200
SJ4.5X5.04500 X500074.75351750Y132M-47.5XLD7.5-7-43861410864
SJ5.0X5.65000X5600104.5312046Y160M-411XLD11-8-47874014291
SJ5.5X6.05500X6000135.422100
1246718745
SJ6.5X7.06500X7000215212400Y180L-422GRF147-Y22-4P-70.871789025978
SJ7.0X7.57000 X75002692400Y200L2-622XLD22-10-472050529030
SJ7.5X8.07500 X8000331232900Y200L2-622BLD7-43-22L2255232796
SJ8.0X8.58000X850040218.53300Y250M-830TPS315-3F30559.542467.3
SJ8.5X9.08500X900048018.53300Y250M-830TPS315-3F3413046623
