jaw crusher

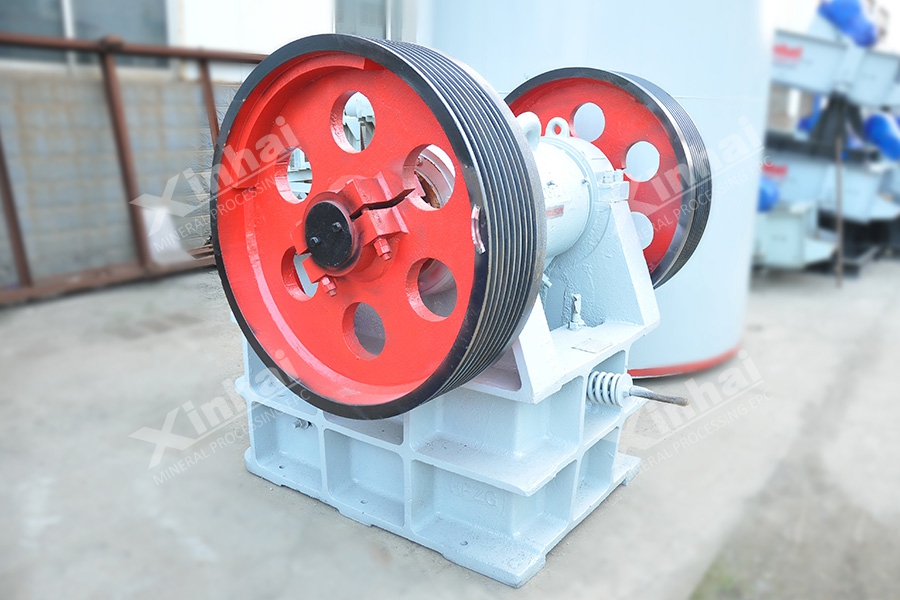

Jaw Crusher

[Introduction]: Xinhai series of jaw crusher with high production capacity, large reduction ratio and high crushing efficiency

[Capacity]: 0.5~700t/h

[Improvement]: Xinhai improves the traditional specification of crushing chamber by adopting high speed swing jaw and cambered jaw plate.

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

PRODUCT STRUCTURE

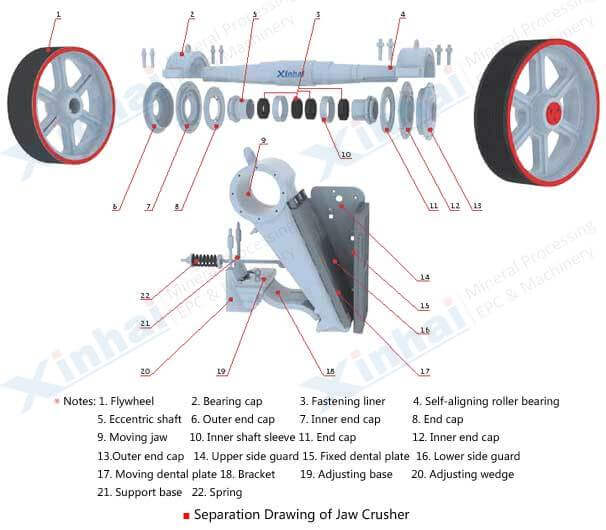

jaw crusher-principle PRODUCT STRUCTURE Processing

The motor transmits power through belt, drives the moving jaw to do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the material will be crushed in multiple ways. The angle of jaw crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of jaw crusher.

TECHNICAL PARAMETERS

TypeModelInlet Dimension (mm)Outlet
 Dimension
(mm)		Max. Feed Size (mm)Capacity
(t/h)		Rotating Speed of Eccentric Wheel (r/min)Motor
 Power
(kW)		Overall Dimension (mm)Weight
 (kg)
Ordinary
Crushing		PE100X150100X1505~20800.5 ~23002.2525X535X605230
PE150X250150X25010 ~401252~63005.5875X745X9351100
PE200X350200X35010 ~501606~103007.51080X1060X10881600
PE250X400250X40020 ~602108~26300151108X1090X13922396
ZGPE250X4008~161430X1316X12962800
PE250X500250X50020 ~8021013 ~4530018.51360X1450X14403100
ZGPE250X50013 ~211425X1420X14173300
PE400X600400 X60040~10035025 ~64275301650X1748X15205800
ZGPE400X60014 ~361716X1736X16536500
PE500X750500X7505012040030 ~80275451900X1876X18219000
ZGPE500X7502501980X2024X192012000
PE600X900600 X90075 ~20048056~192250752280X2245X232016700
ZGPE600X9002280X2245X232014500
ZGPE750X1060750X106080~235630108~256250902450X2472X279528000
ZGPE900X1200900X120095~265750186~3982001103335X3182X302550000
ZGPE1100X14001100X1400150~300950250~6001931323900X3040X387570000
ZGPE1200X15001200X1500160~3201000280~7001901603800X3040X415082000
Fine
Crushing		PEX150X750150X75018 ~481208~25320151210X1572X10452800
ZGPEX150X75010 ~401240X1586X10253500
PEX200X1000200 X100020~5516012 ~50330221860X1385X12005200
ZGPEX250X750250X75020 ~6021010 ~45320301751X1400X15154900
PEX250X1000250X100020 ~5021015 ~50330301550X1990X13706500
ZGPEX250X10001650X1958X14606800
ZGPEX250X1200250X120020 ~6021020 ~60320451650X2170X14659000
ZGPEX300X1300300X130025 ~6525020 ~80330551980X2456X174011500
