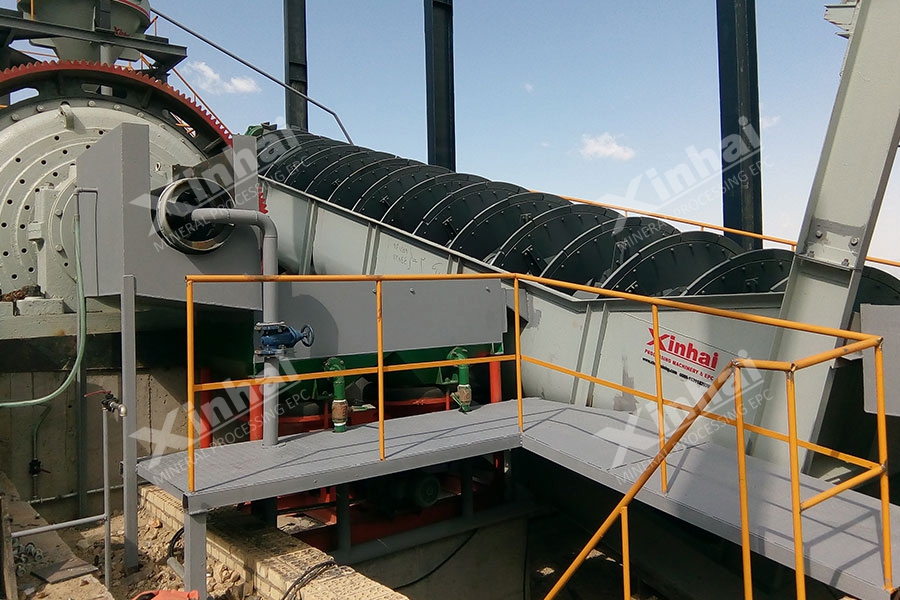

Submerged Spiral Classifier

Submerged Spiral Classifier

[Introduction]: Classifier---the spiral of overflow end is completely immersed below liquid level

[Capacity]: 50～1410 t/d

[Improvement]: An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.

CHATCHAT MESSAGEMESSAGE

ADVANTAGES

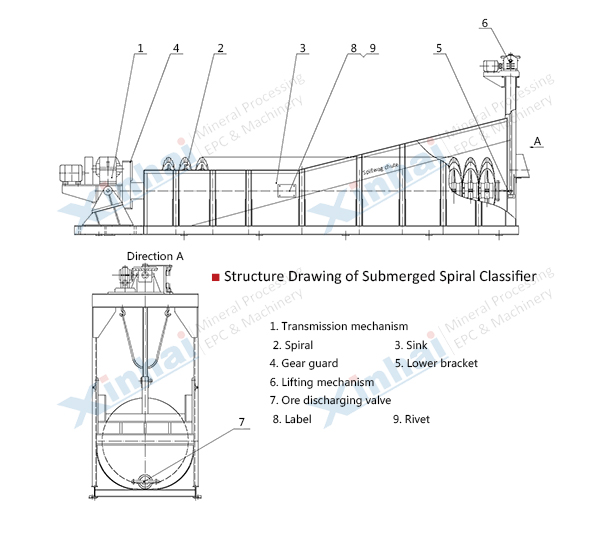

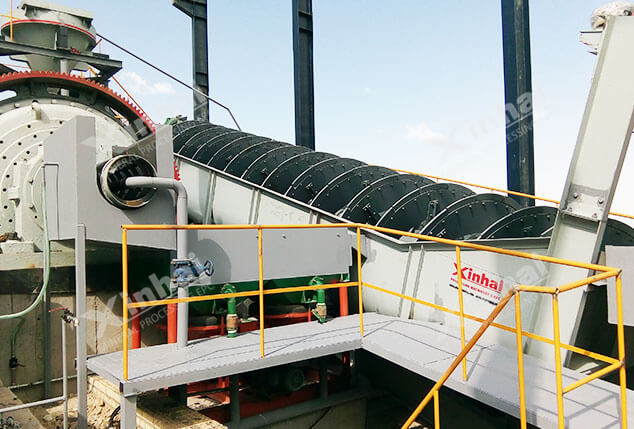

PRODUCT STRUCTURE

Submerged Spiral Classifier principle PRODUCT STRUCTURE Processing

The spiral classifier working principle: Fine ore pulps are fed into a water tank through feeding opening located in the center of settling zone. Beneath the inclined a water tank is the ore pulp classification zone where ore pulps are stirred by low-speed impellers. Fine ore particles are lifted up and then spilled out the overflow opening; coarse ore particles precipitate down to the tank bottom and are discharged via discharge opening.

TECHNICAL PARAMETERS

TypeModelRotating Speed of Spiral (r/min)Capacity of Sand Return (t/d)Capacity
 of
 Overflow
 (t/d)		Spiral
 Diameter
 (mm)		Spiral
 Length
 (mm)		Slope
 of
 Water
 Tank		Drive
 Motor
 Model		Drive
 Motor
 Power
 (kW)		Lifting
 Motor
 Model		Lifting
 Motor
 Power
 (kW)		Weight
 (kg)
SubmergedSingle
 Spiral
Classifier		FLC-10002.5~7.4160~70050-260Φ1000839714 ~18Y132M2-65.5Manual
 driven		—5225
FLC-12005~71150~1640120Φ12008400Y160M-67.5Y90L-41.59583
FLC-15002.5 ~61140~2740185Φ150010500Y100L1-42.214226
FLC-20003.6~5.53240~5940320Φ200013000Y160L-415Y100L2-4327753
FLC-24003.66800455Φ240014130Y200L1-618.5Y112M-4432467
FLC-30003.211650705Φ300014300Y200L-430Y112M-4443500
SubmergedDouble
SpiralsClassifier		2FLC    -12003.8 ~61770~2800240Φ12008040Y160M-67.5X2Y100L1-42.2X219610
2FLC-15002.5 ~62280~5480370Φ15001050027450
2FLC-20003.6,5.57780~11880640Φ200012900Y200L2-6,
 Y200L-4		22;30Y100L2-43.0X250621
2FLC-24003.6713700910Φ240014130Y25S-437Y112M-44.0X265283
2FLC-30003.2233001410Φ300014300Y225M-445Y112M-44.0X284900
