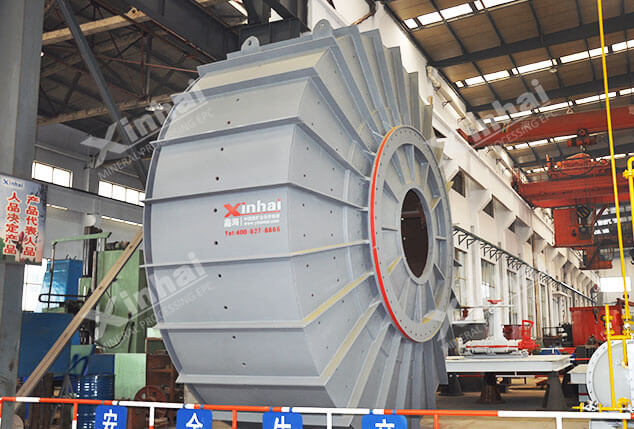

Autogenous Mill

Autogenous Mill

[Introduction]: A wet autogenous grinding mill that materials as grinding media

[Capacity]: 200-350mm

[Improvement]: High-efficiency autogenous mill can realize the second and third stage crushing and screening, and part or all of crushing and grinding functions of the rod mill and ball mill.

ADVANTAGES

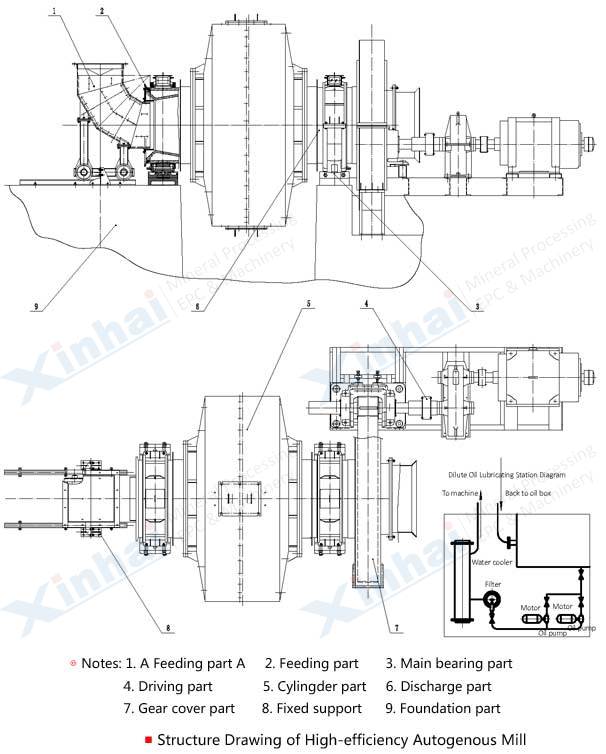

PRODUCT STRUCTURE

The working principle of the autogenous mill is almost the same as that of the ball mill. The difference is that the barrel body of the autogenous mill is larger, which does not use steel balls or any other grinding medium. The efficient autogenous mill uses the crushed material in the barrel body as the grinding medium, which continuously impacts and grinding to achieve the purpose of grinding.

Sometimes, in order to improve the processing capacity of the autogenous mill, a small number of steel balls can be appropriately added, usually accounting for 2-3% of the effective volume of the autogenous mill (also known as a semi-autogenous mill).

TECHNICAL PARAMETERS

ModelDiameter (mm)Length (mm)Feed Size (mm)Main Motor
ModelPower (kW)Voltage (V)Weight (t)
ZMJ401440001400< 350JR148-82451000075
ZMJ401840001800< 350JR1410-83201000082
ZMJ551855001800< 400TDMK800-3680010000175
ZMJ652265002200< 400TDMK1600-40160010000280
ZMJ752575002500< 400TM2500-16250010000455
ZMJ752875002800< 400TM2500-16250010000465
