What Kind of Mineral Grinding Equipment Is Used in Iron Ore Processing Flow?

01The important position of grinding equipment in iron ore beneficiation

Grinding equipment is a key process in iron ore beneficiation because they are used to reduce ore particle size. By grinding the ore to a standard size, the monomeric dissociation of gangue minerals and valuable minerals can be achieved, making the subsequent separation process more rapid and efficient. In addition, after the mineral is processed by the grinding equipment, the surface area of the ore can be increased to promote the chemical reaction in the subsequent sorting process.

02Grinding equipment commonly used in iron ore beneficiation process

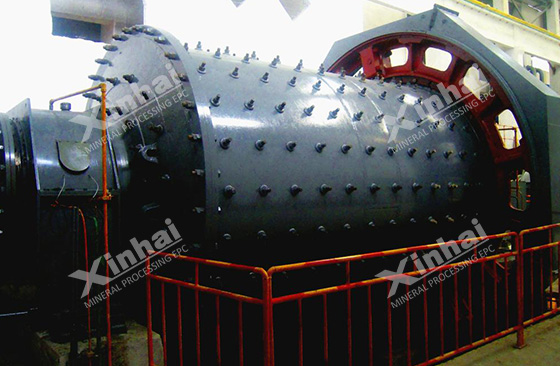

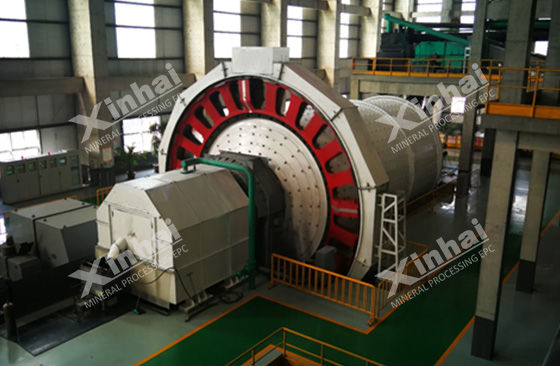

1. Ball mill

Ball mill is widely used mineral grinding equipment in iron ore beneficiation process. They consist of a rotating cylinder filled with grinding media steel balls for grinding ore. Grinding is the use of impact and friction between ore particles and grinding media. Ball mills have different uses. In actual production, wet ball mills and dry ball mills can be selected according to ore characteristics to improve the grinding efficiency. The high adaptability of the ball mill makes it suitable for various iron ore beneficiation applications.

2. Rod mill

Rod mills are similar to ball mills, using long rods instead of steel balls as the grinding medium. The long rods roll and grind the ore in the mill, which can cause a chain effect. The rod mill is especially suitable for the coarse grinding process, which can process ore particles below 50 mm. Rod mills are often used in the early stages of beneficiation for further processing of coarsely selected ore particles.

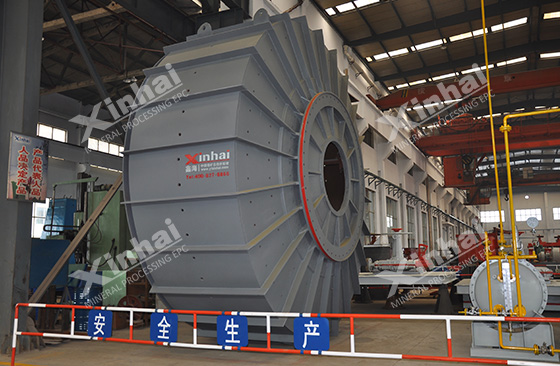

3. Autogenous mill

The working principle of the autogenous mill is mainly to rely on the ore itself as the grinding medium for processing. The design structure of the autogenous mill does not require the operation of steel balls or steel rods, and utilizes the self-grinding effect of ore particles. Autogenous mills can efficiently grind large chunks of ore and are usually used in the coarse grinding stage of iron ore concentrators.

4. Semi-autogenous mill

Semi-autogenous mills combine autogenous and ball mills. It uses a mixture of ore and steel balls as the grinding medium, in which the ore is used as the grinding medium for self-grinding, and the steel ball is used as an assist for further grinding. SAG mills are usually used in the later stages before beneficiation.

03Precautions for choosing grinding equipment

When choosing an iron ore beneficiation mill, several factors should be considered:

a. Particle size requirements: Different iron ore beneficiation processes have specific particle size requirements. Grinding equipment should be able to achieve the desired particle size distribution.

b. Moisture content: Some grinding equipment are more suitable for dry grinding, while others are more suitable for wet grinding operations. The moisture content of the ore may affect the selection of grinding equipment.

c. Energy Efficiency: The grinding process consumes a lot of energy. Choosing energy-efficient grinding equipment can help reduce beneficiation costs and environmental impact.

d. Maintenance and operating costs: When selecting grinding equipment, maintenance requirements and operating costs related to the selected grinding equipment should be considered to avoid equipment damage due to improper operation during use.

The above content is the type of grinding equipment that may be used in the iron ore beneficiation process and the factors that should be paid attention to when selecting equipment. The application of mineral grinding equipment is very important in iron ore beneficiation. Choosing the right grinding equipment is the key to achieving the desired particle size distribution and optimizing the beneficiation process. By considering factors such as particle size requirements, moisture content, energy efficiency, and maintenance costs, suitable grinding equipment can be selected to improve the efficiency and effectiveness of iron ore beneficiation. Therefore, Xinhai Mining recommends to conduct a beneficiation test and analysis before purchasing grinding equipment to understand the characteristics of the ore and select the appropriate grinding size and grinding process.
