Phosphate Ore Types, Beneficiation Methods and Equipment

013 types of phosphate ore

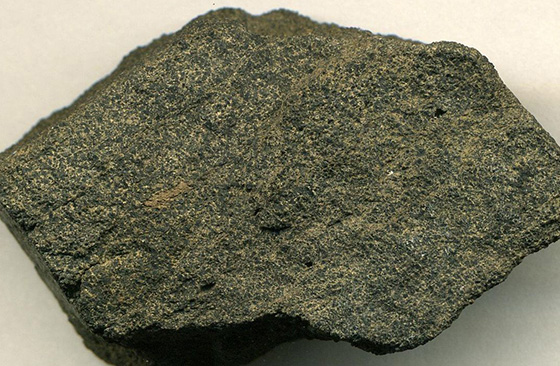

The types of phosphate ore in nature can be divided into: sedimentary phosphate rock, igneous phosphate rock, metamorphic phosphate rock, etc.

1. Sedimentary phosphate rocks: These phosphate rocks are formed by the accumulation and consolidation of phosphate-rich sediments over long geological time. They are a common type of phosphate rock found in sediments such as the Phosphoria Formation in the western United States and the OCP deposits in Morocco.

2. Igneous phosphate rocks: These phosphate rocks are formed by the solidification of molten rock containing phosphate minerals. The main type of igneous phosphate rock is called apatite and is found in various igneous rocks and pegmatites.

3. Metamorphic phosphate rocks: These phosphate rocks are formed due to the transformation of existing phosphate deposits due to metamorphism at high pressure and temperature. Metamorphic phosphate rock is rarer than sedimentary phosphate rock and igneous phosphate rock.

025 phosphate ore beneficiation methods

In terms of phosphate ore beneficiation technology, there are several commonly used methods. The choice of technology depends on the characteristics and grade of the ore and the desired end product. The following are some common beneficiation technologies used in phosphate rock processing:

1. Flotation method: This is a widely used method for separating phosphate minerals from gangue minerals. The ore is treated with various reagents and air bubbles are introduced that selectively attach to the phosphate minerals, which can then be separated from other ores.

2. Gravity separation method: This method utilizes the difference in specific gravity between phosphate minerals and gangue minerals. Technologies such as shakers and spiral separators can be used to separate heavier phosphate particles from lighter gangue particles.

3. Magnetic separation method: Magnetic separation method is used to remove magnetic impurities in phosphate rock. Paramagnetic minerals such as monazite can be separated from non-magnetic phosphate minerals using high intensity magnetic separators.

4. Calcination method: Calcination refers to heating phosphate rock to high temperatures in a controlled environment to remove volatile impurities and improve the reactivity of the ore. This can improve the efficiency of subsequent processing steps.

5. Chemical beneficiation method: Various chemical processes can be used to improve the grade and quality of phosphate rock. These processes may include leaching, selective dissolution or acid digestion to remove impurities and concentrate phosphate minerals.

It is important to note that the specific beneficiation technology chosen for phosphate rock processing may vary depending on factors such as ore characteristics, economic considerations and environmental regulations.

03Phosphate ore beneficiation equipment at different stages

The beneficiation of phosphate rock typically involves a series of mineral processing steps to separate valuable phosphate minerals from host rock minerals and impurities. The following are some commonly used mineral processing equipment and technologies for phosphate ore beneficiation:

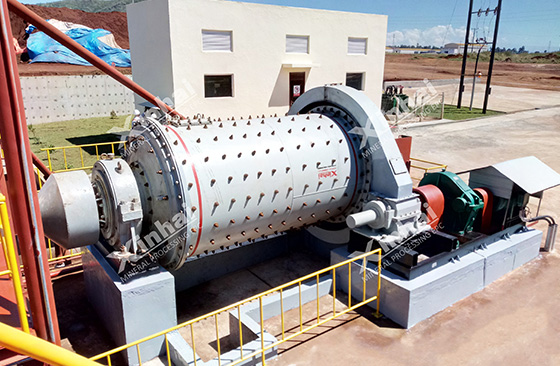

1. Crushing and grinding equipment: Use jaw crushers, cone crushers and grinding machines (such as ball mills, rod mills) to reduce the particle size of phosphate rock to a suitable particle size suitable for further processing.

2. Classification equipment: Use a screening machine, hydrocyclone or classifier to divide the ground phosphate rock into different particle size gradations. This helps optimize the grinding process to achieve the desired particle size distribution.

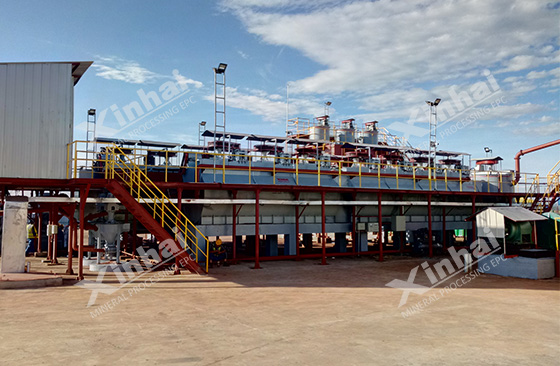

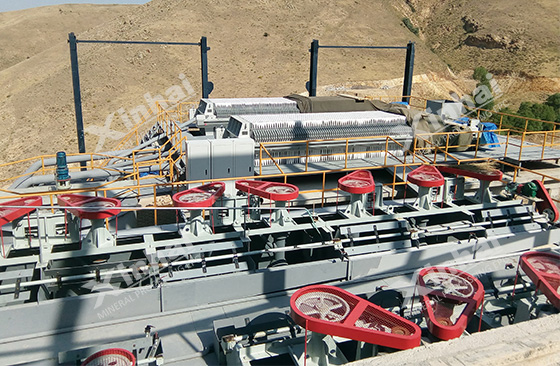

3. Flotation equipment: Foam flotation is a commonly used phosphate ore beneficiation method, which relies on the difference in surface properties between phosphate minerals and surrounding rock minerals. The flotation process is carried out using flotation equipment such as flotation cells, and chemicals (collectors, frothers) are added to it to selectively separate valuable phosphate minerals from unwanted minerals.

4. Magnetic separation equipment: Magnetic separation can be used to remove magnetic impurities in phosphate rock. Use magnetic separation equipment such as magnetic drums or magnetic rollers to attract and separate magnetic impurities from non-magnetic phosphate rock.

5. Gravity separation equipment: Use gravity separation technology, such as gravity separation, shaking table or spiral concentrator, to separate phosphate rock according to density differences. This is particularly useful for separating coarse-grained phosphate rock.

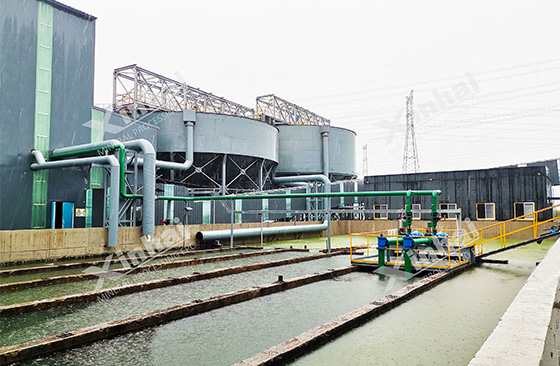

6. Concentration and filtration equipment: Concentrator and filtration equipment, such as vacuum filter or pressure filter, are used to separate the solid-liquid mixture produced during the mineral processing process. This helps achieve higher concentrations of phosphate minerals and produces a dehydrated phosphate rock concentrate.

7. Drying equipment: If a dry final product is required, drying equipment such as a rotary dryer or a fluidized bed dryer can be used to remove the moisture from the phosphate concentrate.

8. Other technologies: Depending on the specific characteristics of the phosphate rock and the desired end product, other technologies such as electrostatic separation, roasting or leaching may also be used.

It is important to note that the choice of mineral processing equipment and technology for phosphate ore beneficiation may vary depending on factors such as ore composition, desired product specifications and economic considerations. Specific equipment and process designs will be determined based on an in-depth understanding of the ore characteristics and project requirements. Xinhai Mining recommends conducting beneficiation test and analysis of phosphate ore in advance to determine a suitable phosphate ore beneficiation plan. Xinhai Mining has 30 years of experience in mineral processing scheme design and equipment production. We can provide you with customized phosphate mineral processing schemes and equipment. Welcome to leave a message for consultation.
