Optimization of Chrome Ore Beneficiation Process

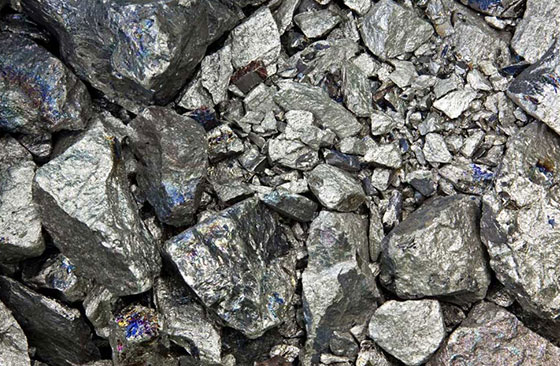

01Types of chrome ore and their main characteristics

The types of chrome ore mainly include aluminum chromite and magnesium chromite.

1. Aluminum chromite: The main component is chromite, which is a complex mineral containing aluminum, chromium, iron and other elements. Due to its complex composition, aluminum chromite is difficult to process, but due to its unique chemical properties, it has high industrial application value.

2. Magnesium chromite: Magnesium chromite contains magnesium, chromium, iron and other elements, and usually coexists with chromite. Due to the existence of the symbiotic relationship, the separation process may be more complicated, and it is necessary to select a suitable sorting method to improve the separation efficiency.

02Mineral characteristics of chrome ore

- Hardness and brittleness: Chrome ore has a high hardness, but it is also very brittle. This characteristic may cause the ore to break during the crushing and grinding process, so it is necessary to select appropriate crushing and grinding equipment.

- Poor electrical conductivity and thermal conductivity: Chrome ore has poor electrical conductivity and thermal conductivity, which has limited direct impact on the beneficiation process, but the heat dissipation during the ore grinding process needs to be considered.

- Uneven embedded particle size: The embedded particle size of minerals in chrome ore ranges from fine to coarse, and the size of crystals inside the ore varies greatly, which directly affects the dissociation and monomer separation of minerals during the beneficiation process. In addition, the embedded particle size of chrome ore is fine, and fine grinding is usually required to ensure the full dissociation of chrome ore from other minerals. This feature increases the complexity of crushing and grinding.

- Associated with harmful elements: Some chrome ores contain harmful elements such as sulfur and phosphorus, which may cause pollution problems during subsequent processing.

03Traditional chrome ore dressing process

The traditional chrome ore dressing process includes three main steps: crushing and grinding, gravity separation and magnetic separation, and flotation.

1. Crushing and grinding: Crushing and grinding is the first step of the traditional beneficiation process. The chrome ore is crushed to a certain particle size through crushing and grinding to facilitate the subsequent separation operation. The efficiency of the crushing and grinding process directly affects the subsequent separation effect and determines the degree of dissociation of chrome minerals.

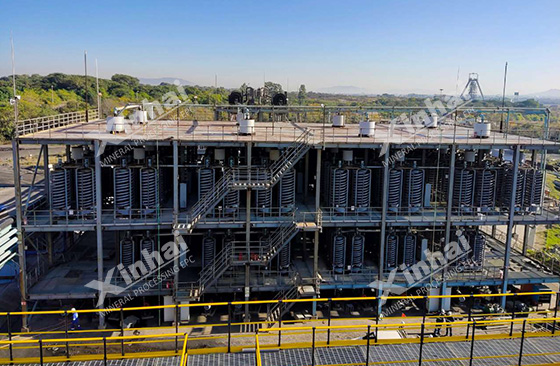

2. Gravity separation and magnetic separation: According to the density and magnetic difference between chrome ore and gangue minerals, the traditional process uses gravity separation and magnetic separation to initially separate chrome ore from gangue minerals. Gravity separation methods include equipment such as jigs and shaking tables, while magnetic separation uses wet or dry magnetic separators to separate according to the magnetic field strength and the magnetic difference of minerals.

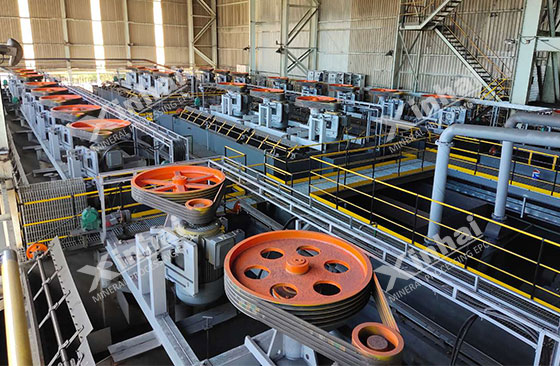

3. Flotation: For minerals with similar density and magnetic properties, flotation is used in traditional processes for further separation. Flotation improves the grade and recovery rate of chrome ore by adjusting reagents and flotation conditions.

04Optimization and improvement of chrome ore dressing process

In order to improve the resource utilization rate of chrome ore dressing process and reduce environmental pollution, modern chrome ore dressing process has been optimized in many aspects.

1. Crushing and grinding process optimization: In the crushing process, high-efficiency and energy-saving equipment such as jaw crusher and cone crusher are used to improve crushing efficiency and reduce energy consumption. By adjusting parameters such as grinding time, medium and concentration, the grinding fineness is optimized and the dissociation degree of chromium minerals is improved. According to the properties of the ore and product requirements, the appropriate crushing and grinding process is selected to reduce process energy consumption and cost.

2. Optimization of gravity separation: Technical improvements in gravity separation equipment such as jigs and shakers have improved the structure and performance of the equipment, thereby improving separation efficiency. Research the application of heavy medium separation in chromite separation, and explore suitable heavy medium types and separation conditions based on the properties of the ore. Combine gravity separation with other beneficiation methods such as flotation and magnetic separation to form a joint process with complementary advantages and improve the overall recovery rate.

3. Optimization of magnetic separation: Use high-efficiency, high-gradient wet or dry magnetic separation equipment, such as wet magnetic separators and dry magnetic separators, to achieve effective separation of gangue minerals by adjusting magnetic separation conditions such as magnetic field strength and feed concentration. Combine magnetic separation with gravity separation and flotation to further improve separation effects and increase the recovery rate of useful minerals.

4. Flotation method optimization: Technical upgrade of traditional flotation equipment, such as improving the aeration method and stirring intensity of the flotation machine, to improve flotation efficiency. Optimize the flotation process based on ore properties and product requirements, including configuring roughing, concentrating, and sweeping operations. The flotation method is combined with the gravity separation method and the magnetic separation method to form a combined separation process of multiple methods to improve the comprehensive recovery rate. Through continuous technological innovation and practical accumulation, the flotation process is continuously optimized to adapt to changes in different ore types and market demand.

Optimizing the chrome ore beneficiation process can not only improve resource utilization, reduce waste, and meet the needs of sustainable utilization of modern mineral resources, but can also significantly reduce environmental pollution caused by mineral processing. By optimizing the process flow, upgrading mineral processing equipment, and improving fine grinding and separation technology, it not only improves production efficiency, but also achieves efficient recovery and utilization of chromium ore resources, laying the foundation for the green transformation of the industry.
