Manganese ore is an important source of manganese, and the main minerals include pyrolusite, psilomelane, ferromanganese ore, brown manganese ore and rhodochrosite. These minerals have important application value in industry, especially in the fields of steel and battery manufacturing. Effective mineral processing technology can not only improve the recovery rate of manganese ore, but also reduce production costs. At present, there are various methods for beneficiation of manganese ore, including gravity separation, heavy medium-high intensity magnetic separation, roasting-high intensity magnetic separation, single high intensity magnetic separation, flotation and the combined application of multiple methods.
Manganese minerals are usually weakly magnetic minerals, and their specific magnetic susceptibility is significantly different from that of gangue minerals. Therefore, strong magnetic separation of manganese ore plays an important role in the mineral processing process. For manganese carbonate ore and manganese oxide ore with simpler composition and coarser embedded particle size, a single magnetic separation process can obtain good separation indicators. Specifically, when separating manganese carbonate ore, the magnetic field strength of the magnetic separator needs to reach above 480 kA/m, while when processing manganese oxide ore, the magnetic field strength of the magnetic separator usually needs to be higher, generally above 960 kA/m.
Use the table of contents below to navigate through the guide:
01Magnetic separation of oxidized manganese ore
Oxidized manganese ore mainly comes from weathering leaching deposits. It is a secondary ore with a soft texture and contains a large amount of clay minerals. These characteristics make manganese oxide ore prone to mudification during mining and transportation, and the mud content is usually 20%~70%. In order to improve the grade of manganese in the ore and improve the subsequent crushing, screening, beneficiation and transportation conditions, the ore must be washed.
.jpg "Manganese Ore Dressing Technology")

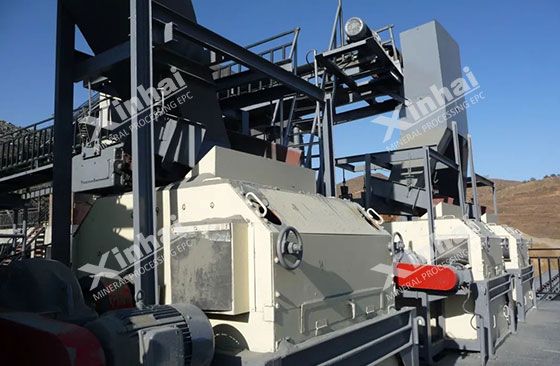

During the washing process, coarse particles (about 5mm or more) can be separated by gravity separation methods such as jigging to remove impurities in larger particles. Fine particles (about 5mm or less) are suitable for separation using strong magnetic separation methods to improve the grade and recovery rate of manganese ore. In this process, the magnetic field strength, equipment selection and process parameter setting of strong magnetic separation have an important impact on the final beneficiation effect.
02Magnetic separation of carbonate manganese ore

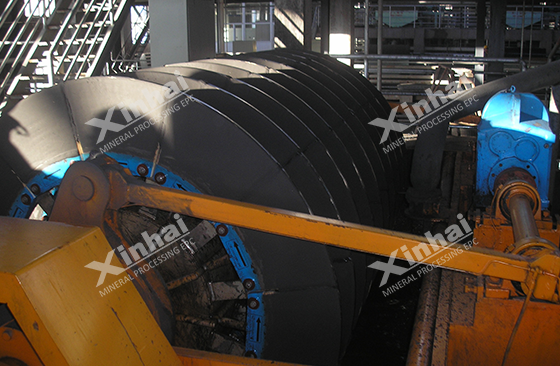

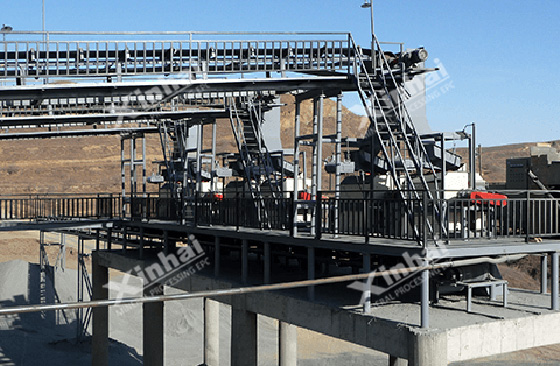

Manganese carbonate deposits are usually marine sedimentary manganese deposits with rich reserves and large scale. They are important resources for producing commercial manganese ore. The main minerals of manganese carbonate ore deposits are rhodochrosite and manganese calcite. After the beneficiation process has undergone steps such as fine crushing, grinding and classification, ores of different particle sizes enter different magnetic separators for processing.
Through this series of processes, the final concentrate can be sintered after being combined to further improve the manganese extraction rate. The key to the whole process is grinding and classification to ensure that ores of different particle sizes can get the best separation effect. On this basis, the reasonable adjustment of the working parameters of the magnetic separation equipment, such as magnetic field strength, processing capacity and sorting time, will have a positive effect on the recovery rate and grade improvement of the ore.
03Optimization of manganese ore beneficiation process
In the process of manganese ore beneficiation, process optimization is the key to improving production efficiency and resource utilization. First, the impact of gangue minerals such as clay on the mineral processing process can be reduced by refining the pretreatment process. Use appropriate washing equipment and technology to ensure that most of the gangue is removed in the initial stage to improve the effect of subsequent magnetic separation.
Secondly, optimizing the grinding process is crucial. According to the characteristics of the ore, select appropriate grinding equipment and grinding media to achieve the best particle size distribution, thereby improving the efficiency of sorting. Especially when processing manganese oxide ores containing clay minerals, reasonable grinding time and fineness settings can significantly improve the subsequent magnetic separation effect.
In addition, the combined application of various mineral processing methods can also bring new ideas to the processing of manganese ore. For example, combining magnetic separation with flotation can effectively improve the recovery rate of refractory ores. According to the different compositions and physical and chemical properties of manganese ore, flexible selection of suitable mineral processing combinations will help improve the overall mineral processing efficiency.
In summary, the beneficiation process of manganese ore is of great significance in improving the recovery rate of manganese resources and reducing production costs. Through the effective treatment of manganese oxide ore and manganese carbonate ore, not only can the grade of ore be improved, but also the production process can be optimized and the economic benefits can be enhanced. With the continuous advancement of beneficiation technology, the combined application of multiple methods has provided new possibilities for the efficient treatment of manganese ore.
