Oxide gold ore refers to gold-bearing ore in the surface or near-surface oxidation zone, which is formed by oxidation reaction when the ore is exposed to oxygen or other oxidants. Due to its complex nature, the beneficiation process needs to be optimized in combination with the specific mineral composition. Common beneficiation methods include gravity separation, flotation, cyanidation and heap leaching, or a combination of multiple methods to improve gold recovery.
Use the table of contents below to navigate through the guide:
01Gravity separation of oxide gold ore

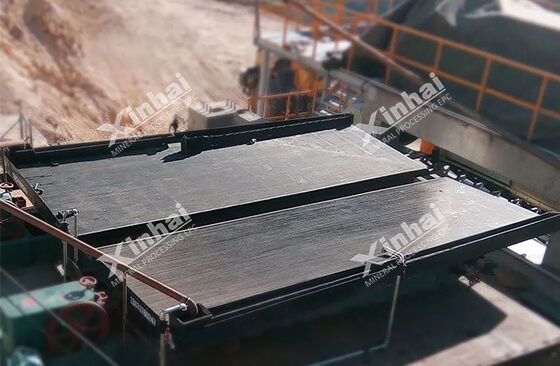

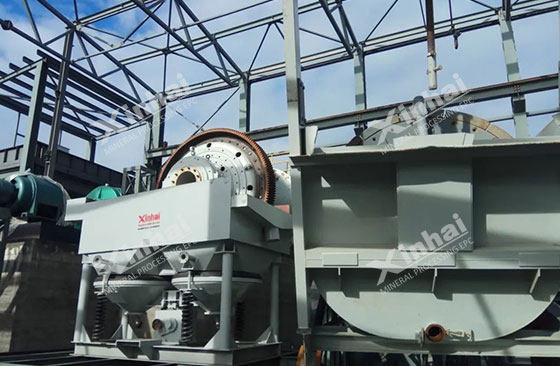

Gravity separation is a physical separation method that uses mineral density differences to separate minerals. It is often used for the pretreatment of oxidized gold ores. After crushing and grinding, the ore is separated by equipment such as a shaker, jig or centrifugal concentrator to obtain a gold-rich concentrate. Gravity separation has the advantages of low cost and simple process, but it has high requirements for ore grade and particle size. It is a common and efficient process for processing oxide gold ore.
02Cyanidation of oxide gold ore
The cyanidation method is a common method for extracting oxidized gold ores, and is particularly suitable for fine-grained, high-grade oxidized gold ores. After the ore is ground, it is mixed with a cyanide solution (such as sodium cyanide) under alkaline conditions, where the gold is dissolved into gold cyanide through a leaching reaction. Subsequently, the dissolved gold is recovered by activated carbon adsorption or zinc precipitation. The cyanidation method has a high recovery rate and can extract fine gold particles, but cyanide is a toxic substance, and safety measures and environmental controls must be strictly implemented to ensure the safe handling and disposal of the cyanide solution. This method is widely used in the mining of small and medium-sized oxide gold ore.
03Heap leaching of oxide gold ore
Heap leaching is a gold extraction process commonly used to treat low-grade oxide gold ore. The basic process includes heap building, drip (spray) leaching, precious liquid collection and gold recovery. The ore is first crushed and screened to a particle size of -10mm to -20mm, and then piled on a heap leaching field with an impermeable membrane. The heap is built in layers or slopes to ensure that the heap has good permeability so that the leachate can penetrate evenly and fully contact the gold ore. Subsequently, the heap is sprayed with cyanide solution or dilute sulfuric acid, and the gold is dissolved by the leachate and penetrates to the bottom of the heap. The gold-containing solution is collected by a liquid collection system, and then the gold is extracted from the solution by activated carbon adsorption, and then the gold is recovered by desorption and electrolysis. Heap leaching has the advantages of low investment, simple operation, and strong adaptability. It is especially suitable for large-scale extraction of low-grade gold ores, but the ore particle size is too fine, which may affect the leaching efficiency.
The oxide gold ore beneficiation process needs to select a suitable extraction method according to the specific characteristics of the ore. The choice of beneficiation method is affected by the mineralogical characteristics of the ore, the gold grade, the available equipment and technology, and factors such as economic feasibility must also be considered. In actual operation, in order to improve the recovery of gold, beneficiation tests are required to cope with the characteristics of different ores and optimize the overall recovery rate.
04Xinhai Mining-Partial Gold Mining Plant Project

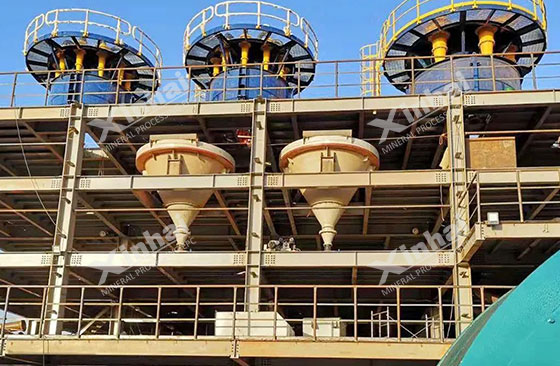

Guinea 15000tpd Gold Mining Plant Project
Fiji 3000tpd Gold Mining Plant Project
Mongolia 3 million tpa Gold Mining Plant Project

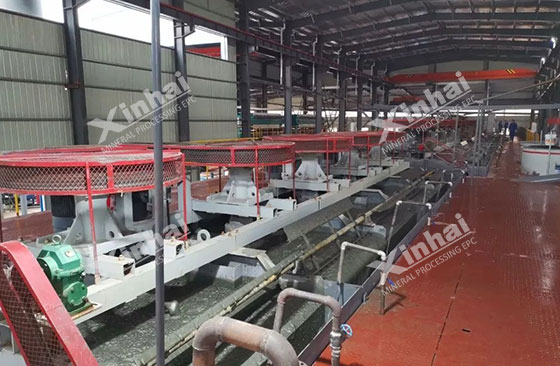

Henan 3000tpd Gold Mining Plant Project
Russia 500tpd Gold Mining Plant Project
Zimbabwe 700tpd Gold Mining Plant Project
