Challenges and Process Optimization of Chromium Ore Dressing Technology

01Traditional chromium ore dressing process

1. Crushing and grinding: In the traditional beneficiation process, the chromium ore is first crushed to a specific particle size through the crushing and grinding process for subsequent beneficiation operations. The purpose of this step is to dissociate the chromium ore and make it easier for subsequent beneficiation operations.

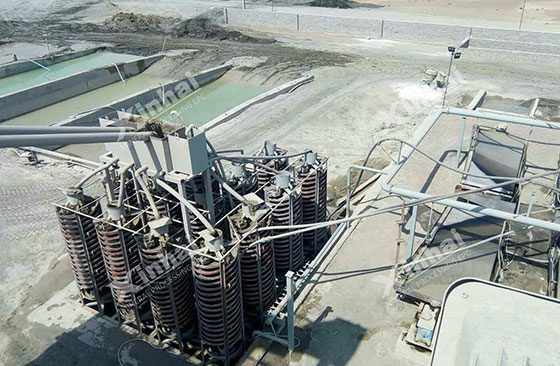

2. Gravity separation and magnetic separation: Gravity separation and magnetic separation are commonly used separation methods in chromium ore beneficiation. Gravity separation uses the density difference between chromium ore and gangue minerals to initially separate chromium ore from gangue through heavy media, jigs, shaking tables and other equipment. Magnetic separation uses magnetic differences to separate chromium ore from non-magnetic gangue in wet or dry magnetic separators.

3. Flotation: Flotation is mainly used to separate minerals with similar density and magnetism, and to improve the grade and recovery rate of chromium ore by rationally selecting flotation agents and equipment.

02Challenges in chromium ore dressing

1. Processing of complex and difficult-to-dress ore: With the gradual reduction of easily-dressed chromium ore resources, the processing of complex and difficult-to-dress chromium ore has become an important challenge facing current ore dressing technology. Complex ores usually contain a variety of impurity minerals and are finely embedded, and the process needs to be further optimized to improve the separation effect.

2. Balance between concentrate grade and recovery rate: Improving the concentrate grade may lead to a decrease in recovery rate. How to strike a balance between the two is the focus of ore dressing research. An effective ore dressing process needs to maintain a high recovery rate while ensuring high grade.

3. Low resource utilization: In traditional ore dressing processes, some useful minerals are not effectively recovered, resulting in resource waste. This not only affects economic benefits, but is also not conducive to the sustainable development of resources.

03Optimization plan for chromium ore beneficiation process

1. Optimization of crushing and grinding processes

- Crushing equipment selection: Choosing efficient and energy-saving crushing equipment, such as jaw crushers and cone crushers, can significantly improve crushing efficiency and reduce energy consumption.

- Grinding fineness control: By optimizing grinding time, grinding medium, grinding concentration and other parameters, precise control of grinding fineness is achieved, thereby improving the dissociation degree of chromium minerals.

- Optimization of crushing and grinding processes: According to the properties of ore and product requirements, adjust the crushing and grinding processes to reduce costs and improve production efficiency.
2. Gravity separation improvement strategy

- Gravity separation equipment improvement: technical upgrade of traditional gravity separation equipment (such as jigs and shaking tables) to improve separation efficiency.

- Application of heavy medium separation: explore suitable heavy medium types and separation conditions to improve the effect of heavy medium separation.

- Combined process optimization: combine gravity separation with other methods to form a combined process to improve the comprehensive recovery rate of chromium ore.

3. Application and optimization of magnetic separation method

- Magnetic separation equipment selection: select high-gradient wet or dry magnetic separators to improve separation efficiency.

- Magnetic separation condition optimization: adjust magnetic field intensity, feed concentration and flushing water conditions to achieve effective separation of chromium minerals and gangue minerals.

- Combine magnetic separation with other methods: combine with gravity separation and flotation to form a combined process of multiple methods to improve the separation effect of chromium ore.

4. Flotation method optimization

- Flotation reagent research and development: develop high-efficiency, low-toxicity and environmentally friendly flotation reagents to improve the flotation rate and selectivity of chromium minerals.

- Improvement of flotation equipment: Upgrade the aeration method and stirring intensity of the flotation machine to improve the sorting efficiency.

- Optimization of flotation process: According to the characteristics of the ore, optimize the configuration and sequence of roughing, concentrating and scavenging operations to improve the sorting quality.

- Combine flotation with other methods: Combine flotation with gravity separation and magnetic separation to form a combined process to meet the processing needs of complex chrome ores.

In summary, the optimization of chromium ore dressing process can not only improve production efficiency and realize efficient utilization of resources, but also effectively reduce environmental pollution and lay a solid foundation for sustainable development. Faced with the challenges of increasingly complex chrome ore resources and increasing difficulty in dressing, the combined process of advanced equipment and multiple dressing processes has become a solution. Through continuous technological innovation and practical exploration, the chromium ore dressing process has steadily advanced in the direction of high efficiency, energy saving and environmental protection. This process not only meets market demand, but also promotes the rational development and long-term utilization of mineral resources, bringing new vitality and prospects to the development of the chrome ore industry.
