Summary of Magnetite Ore Beneficiation Equipment

01Magnetite magnetic separation equipment

Magnetic separation equipment plays a key role in the beneficiation of magnet ore, using the magnetic properties of magnet ore to separate it from non-magnetic materials. Commonly used magnetic separation equipment includes:

1. Wet magnetic separator:

Wet magnetic separators consist of a rotating cylinder immersed in a tank filled with water. As the magnetite passes through the barrel, the magnetic particles are adsorbed on the surface of the barrel and collected, while the non-magnetic materials continue to flow through. This magnetic separator can efficiently separate magnetite ore from gangue minerals.

2. High intensity magnetic separator:

High-intensity magnetic separators use stronger magnetic fields to effectively separate fine magnetite particles from non-magnetic minerals. By applying greater magnetic force, this device improves separation efficiency and is able to produce high-grade magnetite concentrates.

3. Dry magnetic separator:

Dry magnetic separators use magnetic rollers to adsorb and separate magnetic particles and non-magnetic particles without the need for water treatment. These magnetic separators offer advantages when water is scarce or when dry processing is required. Dry magnetic separation is particularly suitable for processing fine magnetite particles.

02Magnetite ore crushing and grinding equipment

Crushing and grinding equipment is used to reduce the particle size of magnetite ore so that its valuable minerals can be dissociated. Commonly used equipment includes:

1. Crusher:

Different types of crushers, such as jaw crushers and cone crushers, are used to crush magnetite ore into smaller, more manageable particles. This primary crushing stage prepares the ground for the subsequent grinding process.

2. Ore grinding machine:

Grinding equipment such as ball mills and rod mills finely grind magnetite ore into powder. Grinding increases the surface area of the ore, helping to release valuable minerals and making subsequent beneficiation processes more efficient.

03Magnetite ore gravity separation equipment

Although gravity separation is not commonly used in magnetite beneficiation, it can still be used to separate coarse magnetite particles from gangue minerals. The following devices are available for reselection:

1. Jig machine

The jig uses pulsating water flow to separate heavier magnetite particles from lighter gangue minerals based on density differences. This equipment is suitable for the enrichment of coarse magnetite particles.

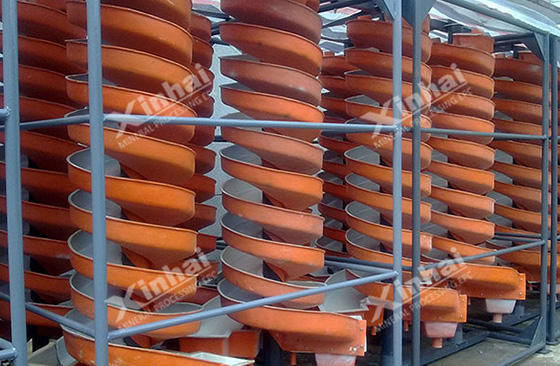

2. Spiral chute:

The spiral chute uses the principle of gravity separation to separate magnetite particles according to their specific gravity. These devices are particularly suitable for recovering fine magnetite particles.

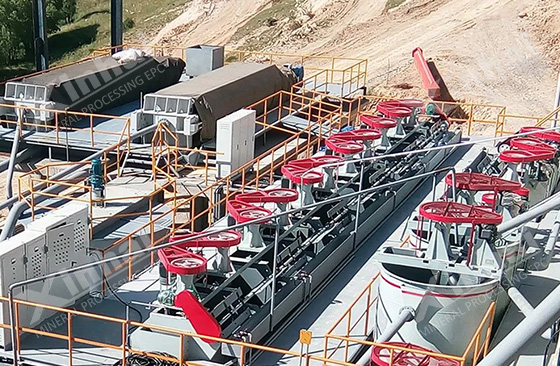

04Magnetite ore flotation machine

Although flotation is less widely used in magnetite ore beneficiation, it can be used to separate magnetite from gangue minerals in some cases. Flotation relies on differences in mineral surface properties for selective separation. However, due to some challenges associated with magnetite flotation, alternative methods are often preferred.

05Magnetite ore dehydration equipment

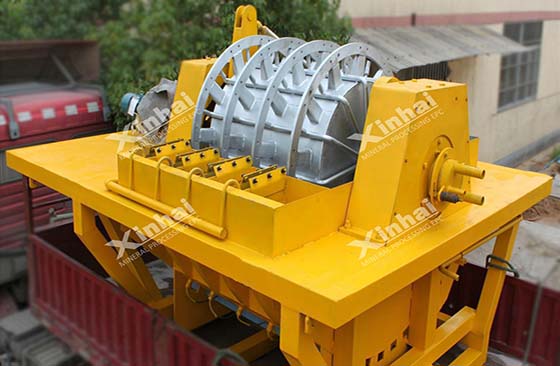

After the beneficiation process, dehydration equipment is required to remove excess water from the concentrate. This step is crucial to reduce transportation costs and ensure efficient processing of the magnetite concentrate. Commonly used dehydration equipment includes thickeners, filter presses and vacuum disc filters.

Magnetite ore beneficiation equipment plays a vital role in unlocking the full potential of this high-grade iron ore resource. Magnetic separators, crushing and grinding equipment, gravity separation equipment, flotation cells and dehydration equipment are all indispensable components of the mineral processing process. Through the rational use of these professional equipment, magnetite ore can be processed efficiently and high-grade magnetite concentrate containing less impurities can be produced. Xinhai Mining can customize mineral processing plans according to the characteristics of ore deposits. If necessary, please leave a message for consultation.
