Essential Key Equipment for Copper Dressing Plants

01Crushing equipment of copper dressing plants

In the copper ore crushing stage, in order to achieve the goals of energy saving, high efficiency and increased production, the strategy of "more crushing and less grinding" is usually adopted to refine the ore particle size to less than 20mm. Jaw crushers are generally used for coarse crushing operations. Because of their simple structure and convenient operation, they are suitable for processing natural copper ores with a particle size of less than 1500mm. Although jaw crushers have disadvantages such as easy wear of lining plates and uneven product particle size, their low price, wide applicability and good processing ability for wet ores make them a common equipment in large, medium and small copper dressing plants.

The cone crusher focuses on medium to fine crushing operations, effectively processing the ore after jaw crushing, and is suitable for copper ore with a particle size less than 300mm. By adjusting the discharge port, the cone crusher can finely control the particle size of the crushed products, and ensure stable operation and low failure rate through the overload protection device. In the two-stage and one-closed-circuit crushing process, a jaw crusher is used for coarse crushing and a cone crusher is used for fine crushing. This configuration not only improves crushing efficiency and output, but also significantly reduces energy consumption.

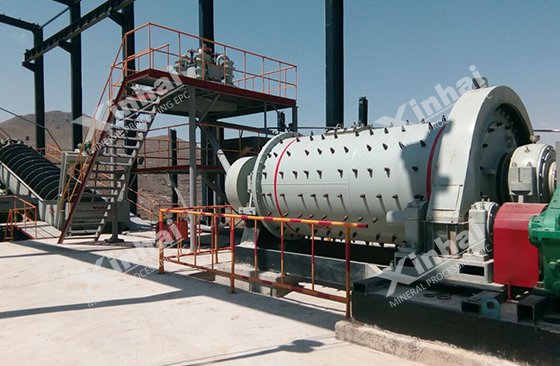

02Grinding equipment of copper dressing plants

The grinding process aims to further crush the crushed ore to enhance the separation of useful minerals and gangue minerals. According to the intercalation characteristics of copper ore, the ideal grinding fineness should be less than 0.5mm. The selection of grinding equipment should be based on actual conditions. The main equipment includes ball mills (grid type and overflow type) and rod mills.

Grid ball mills are mostly used for coarse grinding. Due to their low slurry surface and fast flow rate, they effectively reduce over-crushing, making them the preferred choice for coarse-grained materials. Overflow ball mills are suitable for fine grinding or multi-stage grinding. They have the advantages of simple structure, easy maintenance and fine discharge particle size, and are suitable for processing fine-grained materials. Rod mills are good at processing coarse-grained or high-hardness copper ores. In the grinding and grading process, one or more stages of grinding are usually used, and the type of ball mill can be flexibly selected according to the grinding particle size requirements.

03Classification equipment of copper dressing plants

In the copper dressing process, classification is the process of dividing the ore into different particle sizes according to the size and specific gravity of the ore particles. Commonly used classification equipment includes spiral classifiers, hydrocyclones, etc. The spiral classifier uses the difference in sedimentation speed caused by different particle sizes and specific gravity to work in conjunction with the grinding equipment to form a closed-loop operation, effectively achieving the classification, washing, dehydration and desludging of coarse-grained materials. The hydrocyclone generates a strong centrifugal force under the high-speed flow of the slurry. With its high efficiency, simple structure and large processing capacity, it is widely used in the fields of classification, desludging, concentration and sorting, and has become an indispensable auxiliary equipment in the beneficiation process.

04Flotation equipment of copper dressing plants

The flotation method uses the difference in the physical and chemical properties of the mineral surface under the action of the flotation agent to make the copper minerals adhere to the bubbles and float to the surface of the pulp with the bubbles to form an enriched foam layer, while the gangue minerals remain in the pulp, thereby achieving effective recovery of the copper minerals. Copper ore flotation usually adopts the process of "one roughing, two fines and two sweeping". This method can effectively separate copper minerals from impurities, reduce waste discharge, and improve copper grade and production capacity.

Flotation equipment is mainly divided into mechanical stirring type, aerated stirring type and flotation column according to different aeration methods. Mechanical stirring flotation machine (such as BF, SF type) uses mechanical stirring to fully mix the pulp with air to generate bubbles, which is usually used for roughing and concentrating operations. Aerated stirring flotation machine (such as KYF, XCF type) relies on external aeration equipment to generate bubbles, with a simple structure and easy maintenance, suitable for small and medium-sized ore dressing plants. For large-scale ore dressing plants with large processing capacity and high flotation efficiency requirements, especially in the recovery of fine minerals, flotation columns are an ideal choice.

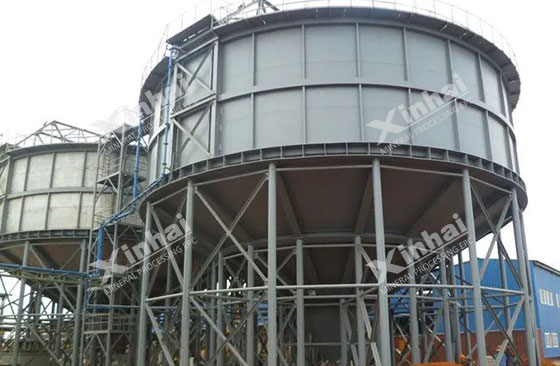

05Concentration and dehydration equipment of copper dressing plants

The dehydration of copper ore is divided into two major links: concentrate and tailings. Concentrate dehydration is usually carried out by combining concentrators and filtration equipment. The concentrator, with its high processing capacity and rapid sedimentation capacity, effectively removes excess water from the copper concentrate. After reaching the appropriate water content, it is further dried to meet the needs of industrial applications. For tailings dehydration, according to specific treatment requirements, a variety of equipment such as high-efficiency concentrators, chamber filter presses, vacuum filters, cyclones or dehydration screens are flexibly used to implement the tailings dry discharge process to achieve effective dehydration of tailings. This process not only improves resource utilization efficiency, but also helps to reduce environmental pollution.

In the operation of copper dressing plants, in view of the diversity of ore types, it is necessary to conduct mineral processing test analysis first to determine the appropriate mineral processing process. After the process plan is determined, a matching set of crushing, grinding, flotation and other equipment is selected to achieve a good return on investment and efficient production goals, thereby achieving an ideal mineral processing effect.
