Refractory Lead-Zinc Sulfide Mineral Flotation Process and Affecting Factors

01Factors affecting the flotation of refractory lead-zinc sulfide ore

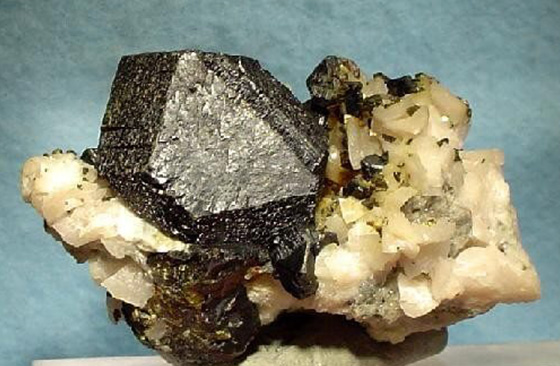

1. Mineralogical complexity: Ore may contain many different sulfide minerals such as galena (sulfide of lead), sphalerite (sulfide of zinc), pyrite (sulfide of iron), chalcopyrite (copper sulfide), etc. The variety of sulfide minerals and their different surface properties can complicate the separation and flotation process.

2. Fine particle size: Refractory lead-zinc sulphide ores often have a high number of fine particles, which can interfere with an effective flotation process, requiring additional comminution or specialized flotation techniques.

3. Presence of complex gangue minerals: Gangue minerals are non-valuable minerals in ores. Refractory ores may contain complex gangue minerals such as quartz, calcite, dolomite or clay minerals which may interfere with the flotation process and reduce collector selectivity.

4. Chemical composition: Certain impurities or elements present in the ore, such as heavy metals or metalloid elements, may affect the flotation process and require specific treatment methods.

To process refractory lead-zinc sulfide ores, advanced flotation techniques, reagent optimization, fine crushing, and sometimes additional steps such as oxidation roasting or hydrometallurgical methods are required to increase the recovery of lead-zinc minerals. Every deposit is unique, so a deep understanding of the ore's properties and detailed mineralogical studies are critical to developing an effective treatment strategy.

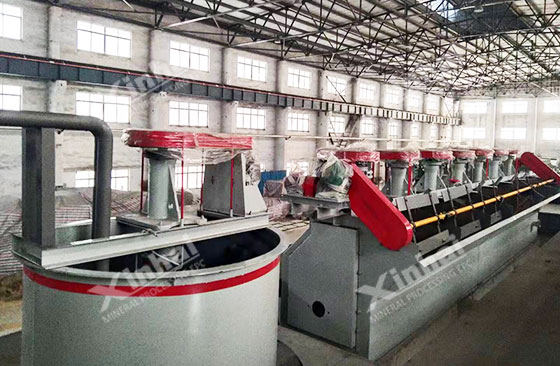

02Flotation technology of refractory lead-zinc sulfide ore

Refractory lead-zinc sulfide ores are difficult to flotation using conventional flotation methods because ores often contain complex sulfide minerals such as galena (PbS), sphalerite (ZnS), pyrite (FeS₂) and others. To efficiently float refractory Pb-Zn sulfide ores, various techniques and strategies can be employed. The following is a general overview of the flotation process for refractory lead-zinc sulfide ores:

1. Crushing and grinding process: Firstly, the ore is crushed and ground to a suitable particle size. The grinding process helps expose valuable minerals and increases their surface area for subsequent flotation.

2. Slurry adjustment: Then the ore pulp after grinding is mixed with chemicals in the flotation tank for flotation. The pulping stage includes adding collectors, foaming agents and modifiers to the slurry. Collectors selectively bind sulfide minerals, frothers form a stable foam, and modifiers adjust pH and other chemical conditions.

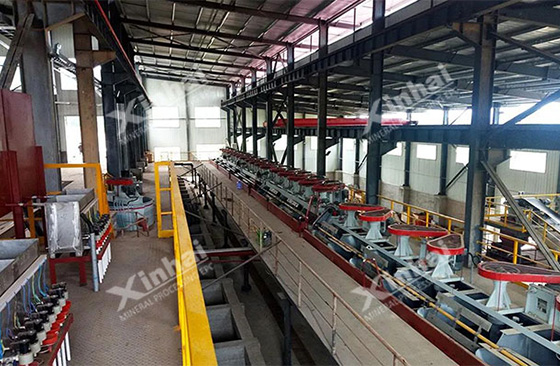

3. Rougher flotation: In the rougher flotation stage, the conditioned pulp is aerated and air bubbles are introduced. Hydrophobic sulfide minerals attach to the air bubbles, forming a buoyant layer on the surface of the flotation cell. Blisters containing valuable minerals are collected as concentrates, while gangue minerals are precipitated and discarded as tailings.

4. Sweep flotation: Sweep stages are sometimes used to further recover additional valuable minerals from rougher tailings. This stage helps to increase the overall recovery of lead and zinc minerals.

5. Selective flotation: The concentrate from the roughing or sweeping stage is further subjected to selective flotation. The purpose of beneficiation flotation is to remove remaining impurities and improve the grade of the final concentrate.

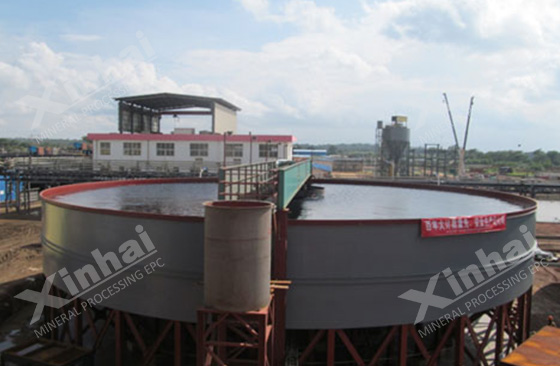

6. Concentration and filtration: Concentrate and filter the final concentrate to remove excess water and obtain a higher-grade final product.

It should be noted that the flotation process of refractory lead-zinc sulfide ores may be more complicated, and may require different reagent combinations and process parameters according to the specific characteristics of the ore. Therefore, Xinhai Mining recommends beneficiation test analysis and consultation with experts or process engineers to optimize flotation conditions for specific ore types.
