Limonite ore is an important iron ore that exists widely in many countries and regions. To maximize the use of this valuable resource, effective beneficiation processes are required to improve recovery and grade. This article will introduce several common limonite ore beneficiation methods, including gravity separation, magnetic separation, flotation separation and combined process.
Use the table of contents below to navigate through the guide:

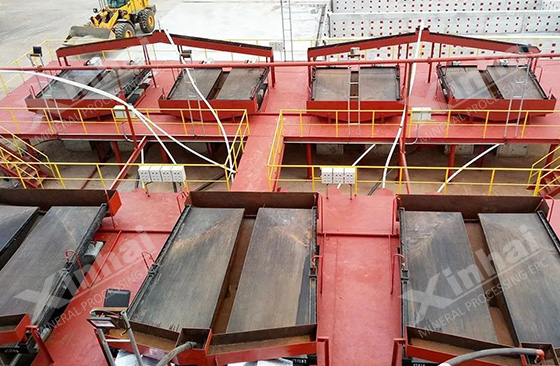

01Limonite Ore Gravity Separation Process
The gravity separation process uses gravity for separation, which is suitable for coarse-grained embedded ores. The advantages of this process are simple equipment, low cost, and low power consumption. The gravity separation process is suitable for resource-poor areas. But the disadvantages are low recovery rate and high tailings grade, which is not conducive to comprehensive recovery of resources. The main steps of this process include three links of washing, screening and gravity separation. Washing can remove the soil and impurities in the ore, and screening can classify the ore according to different particle sizes. Next, limonite and pseudohematite in the ore can be separated by using gravity separation equipment such as heavy media processing machine and jigs.
Due to the low recovery rate and high grade of tailings, which is not conducive to the comprehensive recovery of resources, the gravity separation process is only a very effective mineral processing method in some specific cases.

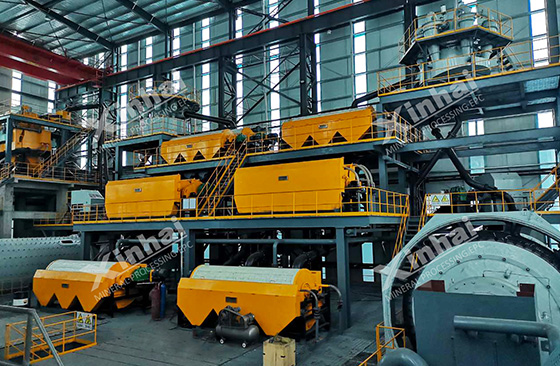

02Limonite Ore Magnetic Separation Process
The magnetic separation process is a kind of beneficiation method that uses magnetism for separation, and is suitable for fine-grained ore. The main steps of the process include crushing, screening and grinding, grading, sorting and other links. Crusher and ball mill are needed to crush and grind the ore, and then use strong magnetic separator and weak magnetic separator for separation, which can separate limonite and hematite and other components.
Compared with other beneficiation methods, the magnetic separation process can greatly improve the grade of the product, but the recovery rate of the product is not much improved. Although this process has some disadvantages, it is still a very effective beneficiation method in some specific cases, especially for fine-grained ore, which requires fine grinding and classification to improve the grade.

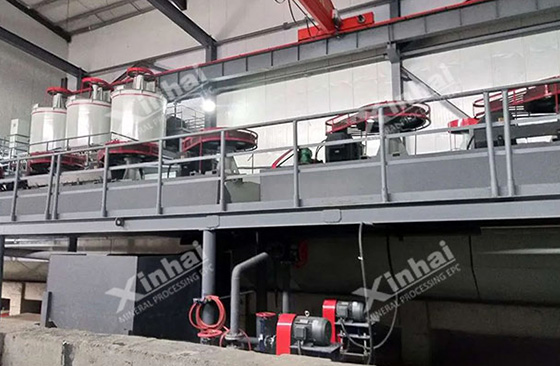

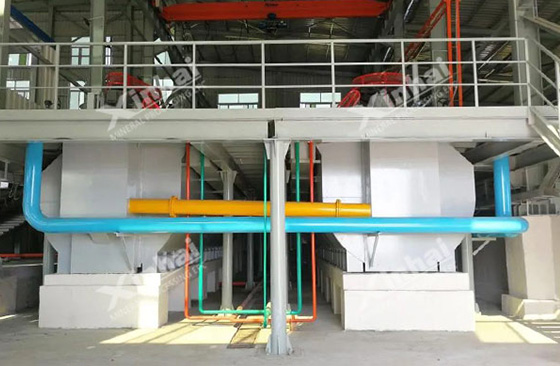

03Limonite Ore Flotation Process
The flotation process is a beneficiation method that uses buoyancy for separation, and is suitable for fine-grained embedded ores. The main steps of the process include desliming, fine grinding and flotation. First, it is necessary to use a washing machine for desliming treatment to remove the mud and impurities in the ore. Then, the ore needs to be finely ground using a ball mill to subdivide the ore into smaller particles. Finally, flotation is carried out using mixing tanks and flotation machines to separate limonite and other components in the ore.
The flotation process is usually used to recover associated sulfides or carbonates, etc., and has a good effect on the recovery of fine-grained limonite. However, this process is only suitable for limonite with a single property, and the cost of flotation is relatively high, so it is necessary to choose the most suitable beneficiation method according to the specific situation.

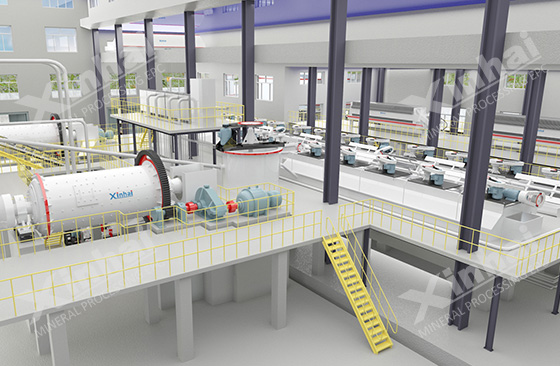

04Combined Beneficiation Process of Limonite Ore
Combined process flow combines gravity separation, magnetic separation, flotation and other methods to achieve complementary advantages and improve recovery rate and grade. Common combined processes include strong magnetic separation-direct flotation, strong magnetic separation-reverse flotation, roasting-weak magnetic separation, gravity separation-weak magnetic separation, etc.
(1)In the strong magnetic separation-positive flotation process, first use a strong magnetic separator to separate the magnetic substances, and then use a positive flotation machine to float out the non-magnetic substances.
(2)In the strong magnetic separation-reverse flotation process, the non-magnetic substances are separated by a strong magnetic separator first, and then the magnetic substances are floated by a reverse flotation machine.
(3)The roasting-weak magnetic separation process is to burn the limonite into minerals with weak magnetic properties, and then separate them with a weak magnetic separator.
(4)In the gravity separation-weak magnetic separation process, the ore is roughly separated by gravity separation equipment, and then the separated ore is further separated by weak magnetic separator.
The combined process can choose the most suitable combination according to different limonite characteristics, so as to improve the comprehensive utilization efficiency of resources and improve the recovery rate and grade at the same time. Although the process of the joint process is more complicated, it is necessary to choose the appropriate combination. However, it combines different beneficiation methods to achieve complementary advantages, and has a significant effect on improving the recovery rate and grade of limonite.
In short, the beneficiation process of limonite ore is an important work, and it is necessary to select the appropriate beneficiation method and process to improve the recovery rate and grade and realize the maximum utilization of resources. The choice of beneficiation process should be comprehensively considered according to the nature, composition and market demand of the ore in order to achieve the ideal beneficiation effect.
