The design of a tungsten ore concentrator is a complex process involving multiple steps and preparations. Some key preparations required for the design of a tungsten ore concentrator include ore property research, process flow design, equipment selection, plant layout and other factors. In this article, we will elaborate on these contents one by one.
Use the table of contents below to navigate through the guide:
01Research on tungsten ore properties
Before the design work is carried out, detailed research on the properties of tungsten ore is required, including the type, composition, particle size distribution, properties of useful minerals and gangue minerals, etc. This information is crucial to determine the mineral processing method and process flow, which needs to be achieved by means of chemical composition analysis, mineral composition research, ore structure and structure analysis, tungsten ore physical property testing, grindability research, optionality research and other means.
02Tungsten ore beneficiation process flow design

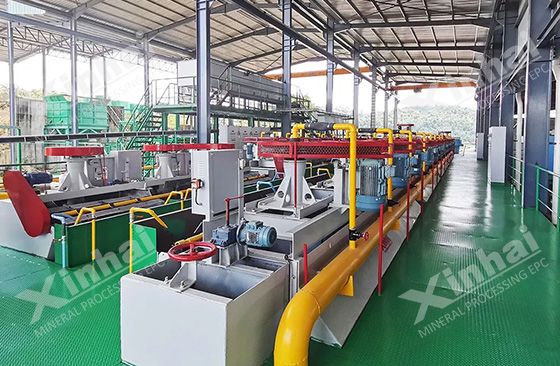

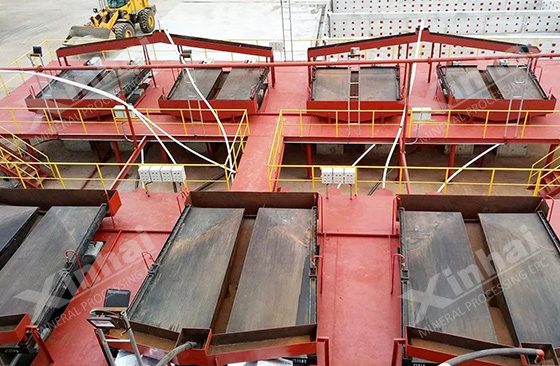

After clarifying the properties of tungsten ore, the next step is to design a suitable mineral processing process based on the properties of the ore. The tungsten ore process usually includes crushing, screening, grinding, classification, flotation, gravity separation, magnetic separation and other steps. For example, wolframite may need to be crushed and ground before gravity separation, while scheelite may need to be crushed and ground before flotation.
After designing the process flow, it is necessary to continuously optimize the process parameters based on test results and production practices to improve the mineral processing efficiency and tungsten recovery rate. At the same time, a cost-benefit analysis of the entire process flow is also required to ensure the economic benefits of the mineral processing plant.
03Selection of tungsten ore processing machine

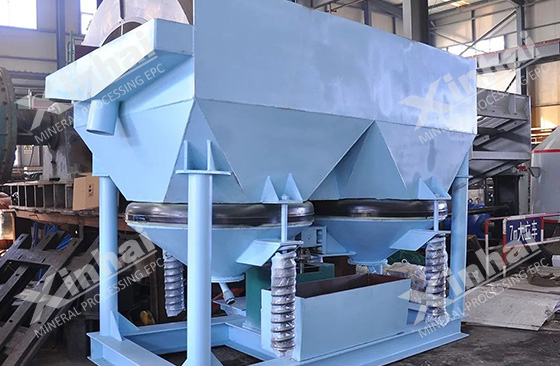

Choose appropriate mineral processing equipment, such as crushers, grinders, flotation machines, gravity separation equipment, etc. The selection of equipment should be based on ore properties, processing capacity and expected beneficiation effects. According to each stage of the process flow, the performance requirements of the required equipment are determined, such as processing capacity, particle size range, wear resistance, energy consumption, degree of automation, etc. The specifications and dimensions of the equipment are determined based on the processing capacity and ore characteristics. This usually involves the equipment's capacity, speed, feeding and discharge capabilities, etc.
On this basis, if there is an existing production line in the design site, it is also necessary to ensure that the selected equipment can be integrated with the existing system or the newly designed system, including material conveying, feeding, discharging, monitoring and control, etc.
04Tungsten ore concentrator plant layout
The plant layout design of a tungsten ore concentrator needs to consider multiple factors to ensure production efficiency, safety, environmental protection and economic benefits. A well-designed factory layout must not only ensure smooth process flow, but also consider factors such as environmental protection, energy saving, and safety. The layout of the factory building should make full use of the terrain, reduce the amount of earthwork and reduce the project cost.
Conduct an environmental impact assessment and rationally arrange facilities such as wastewater treatment, exhaust gas purification and solid waste storage to ensure that the design of the mineral processing plant meets environmental protection requirements and reduce environmental pollution. Design energy- and resource-efficient layouts, such as central heating, electricity, and water circulation systems.
05Economic analysis of tungsten ore concentrator
Conduct a cost-benefit analysis to ensure that the concentrator design is economically feasible. This includes factors such as equipment investment, operating costs, and product value. At the same time, reasonable technical and economic indicators are set, such as concentrate grade, recovery rate, processing capacity, etc., as references in the design and subsequent production processes. In addition, ensure that the concentrator design complies with local and national laws and regulations, as well as industry standards.
The design of a tungsten ore concentrator is a complex task. These preparations are the basis for the design of a tungsten ore concentrator and require comprehensive consideration of technical, economic, environmental and safety factors. After completing the design work of the mineral processing plant, the designer should prepare detailed process flow diagrams, equipment lists, operation manuals and other design documents to facilitate subsequent work. Effective mineral processing design can ensure that the tungsten ore dressing plant can efficiently separate useful minerals, improve the grade and recovery rate of tungsten concentrate, reduce energy consumption and production costs, reduce environmental pollution, and improve economic benefits and sustainable development capabilities.
06Xinhai Mining-ferrous metal dressing plant project
1. Xinjiang 3300tpd iron ore dressing plant
2. South Africa 3000tpd chromite flotation plant
3. Inner Mongolia 2500tpd iron ore dressing plant
4. Yunnan 2000tpd iron ore dressing plant

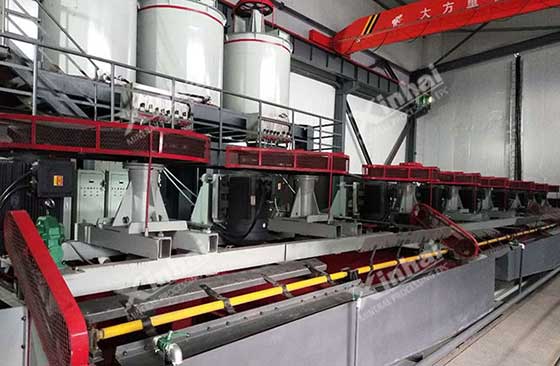

5. Hebei 2000tpd iron ore concentrate desulfurization plant
