Common Copper Ore Minerals Types and Ore-Dressing Methods

01Common Types of Copper Ore minerals

The following are several common copper ore minerals types and their corresponding beneficiation methods:

Copper Sulphide ore: Copper sulphide ore is the most common type of copper ore, such as chalcopyrite (chalcopyrite pyrite) and chalcopyrite. These ores mainly exist in the form of sulfides. The beneficiation method of copper sulfide ore usually includes the steps of grinding, flotation and leaching. First, the ore is crushed and ground to release the metallic minerals in the copper ore. The copper ore is then separated from other impurities through a flotation process to obtain a high-purity copper concentrate.

Copper oxide ore: Copper oxide ore such as hematite (red copper ore), black copper ore and cobalt copper ore, etc., its main components are oxides or hydroxides. In contrast to copper sulfide ores, copper oxide ores generally do not require a flotation step in the beneficiation process. Mineral processing methods may include leaching, heap leaching, extraction, etc. Through these methods, copper oxide ore can be converted into soluble copper salts, which can be further processed and extracted.

Porphyry copper ore: Porphyry copper ore refers to the form in which copper ore is mixed with muddy or fine-grained rock. The beneficiation method of mortar copper ore usually includes ore crushing, grinding, gravity separation and other steps. These steps help to separate the copper ore from rock impurities, resulting in a higher copper content in the ore.

In addition to the above-mentioned types, there are other special types of copper ore, such as coarse sand containing copper, copper-molybdenum ore, etc. For each specific copper ore type, detailed ore characterization and beneficiation experiments are required to determine the appropriate beneficiation method.

02Common copper ore minerals beneficiation methods

In a concentrator, the specific type of copper ore that can be processed depends on the capacity of the plant and the desired end product. Typically, copper ore concentrators are designed to process sulphide ores such as chalcopyrite, sulphide azurite, copper sulphide and azurite. These sulfide ores are usually subjected to a flotation process to separate the copper minerals from the gangue (undesirable minerals and impurities). However, specific ore selection and beneficiation methods may vary based on factors such as ore grade, mineralogy and process technology, which are determined by the technology employed by the plant.

There are several common beneficiation methods for copper ore. Here are some commonly used techniques:

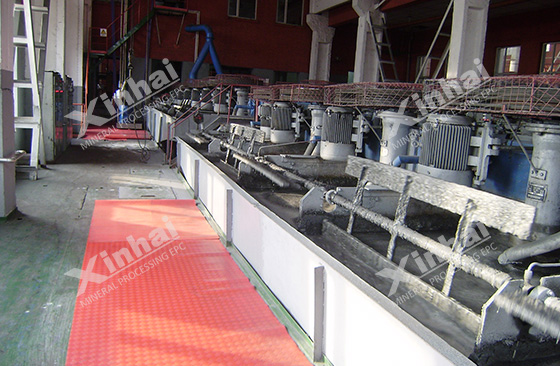

1. Flotation method: Flotation method is the most commonly used method in copper ore beneficiation. It relies on the difference in surface properties between copper minerals and gangue minerals. In this process, finely ground ore is mixed with water and chemicals, including collectors and frothers. Air bubbles are then introduced to selectively attach to the copper minerals, allowing them to separate from the gangue minerals and be collected as a concentrate.

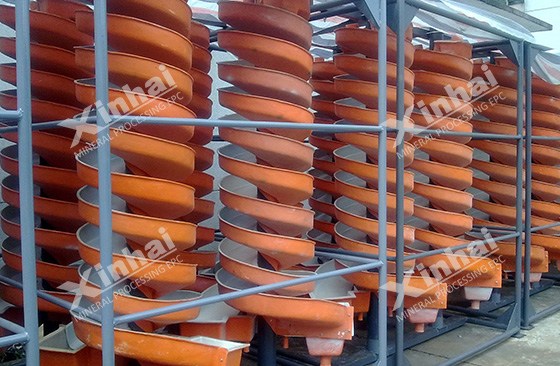

2. Gravity separation method: The gravity separation method utilizes the difference in specific gravity between copper minerals and gangue minerals. This technique is commonly used to pre-concentrate ore prior to further processing. Commonly used gravity separation equipment are gravity concentrators, spiral separators or shakers, which are used to separate heavy copper minerals from lighter gangue minerals.

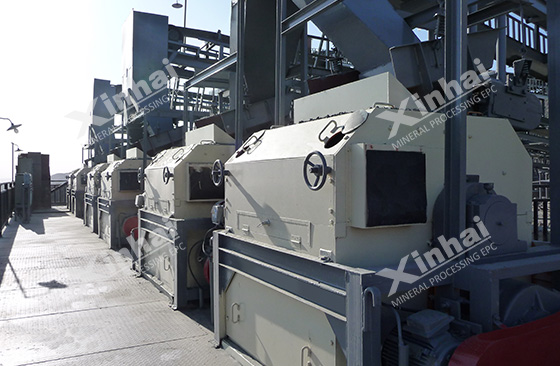

3. Magnetic separation: Magnetic separation is used to separate magnetic minerals from non-magnetic minerals. Although copper minerals are generally not magnetic, certain impurities or associated minerals may be magnetic. Magnetic separation equipment, such as magnetic drums or magnetic rollers, can be used to remove magnetic impurities from ore.

4. Leaching method: Leaching method is a hydrometallurgical method used to extract copper from low-grade ores or copper oxide minerals. In this process, the ore is usually crushed and then reacted with a leach solution such as sulfuric acid or ammonia. The leach solution reacts with the copper minerals, dissolving them into solution. The copper-rich solution is further processed to recover copper.

5. Electrowinning: Electrowinning is a method of extracting copper from leachate or inoculated leachate by an electrochemical process. In this method, a copper-rich solution is passed through an electrolytic cell, where copper ions are reduced and deposited on the cathode. The deposited copper can be further processed and refined.

It is important to note that the choice of beneficiation method depends on the specific characteristics of the copper ore minerals, including its mineralogy, grade and physical properties. Different ores may require different combinations of beneficiation techniques to achieve better beneficiation results. Xinhai Mining recommends mineral processing test analysis to determine the ore properties to facilitate the design of suitable copper mineral processing schemes and equipment. Xinhai Mining can provide you with a complete set of copper ore beneficiation equipment and subsequent installation services, welcome to consult.
