Xinhai makes an appointment with you in mongolia Mining in April,2017

Xinhai makes an appointment with you in mongolia Mining in April,2017

Xinhai EPC Project Profile in mongolia

Since founded in 1997, Xinhai has adhered to “Making It Better” as the goal, taken customer demand as the guide, and concentrate on providing "Turkey Solutions for Mineral Processing Plant ". The products are exported to over 90 countries and regions, and the customers are from all over the world. As the friendly neighbor of China, mongolia has also become the senior partners and clients group of Xinhai more than twenty years with its excellent geographical location and rich mineral resources.

EPC Project Profile

Part of Xinhai Project Cases in mongolia

Part of Xinhai Project Cases in mongolia Part of Xinhai Project Cases in mongolia Part of Xinhai Project Cases in mongolia Part of Xinhai Project Cases in mongolia
Part of Xinhai Project Cases in mongolia Part of Xinhai Project Cases in mongolia
Part of Xinhai Project Cases in mongolia Part of Xinhai Project Cases in mongolia

If you have any questions, please contact us by the following ways, and we will provide you with better help!

Typical Case Analysis

Outer mongolia 150tpd Tungsten Ore Plant was located in Bayan-Ölgii province, which was an EPC project undertook by Xinhai in 2013.

Although the project size is not so large, there are several particularities as follows:

  • (1)The geographical position of mongolia caused high-cold climate in winter, which have specific requirements in the overall design of workshop;
  • (2)>1 mm particles contains undissociated tungsten ore, so the ore particles must be <1 mm before the next process;
  • (3)Fine slime also contains a small amount of tungsten ore.
Project Problems
Solution Proposal

To solve these problems, Xinhai technical personnel put forward the following solutions:

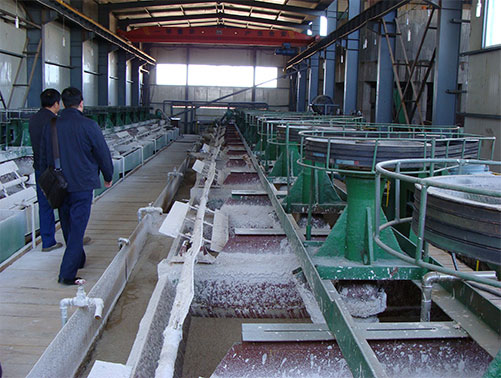

  • (1)Adopts reasonable and compact layout. Making use of artesian flow space rationally made the workshop compact and warm as soon as possible, which was convenient for production in winter. The plant adopted the joint operation process of spiral chute and shaking table. The spiral chute was featured with small occupied area and high recovery rate, and then the shaking table improved the concentrate grade, which met clients’ requirement.
  • (2)Prevents overgrinding, fully dissociate. Recommended to adopt wet rod mill with 110 KW power, which can grind the ore particles to -1mm, and prevent overgrinding effectively.
  • (3)Simple process, good effect. We specially added tungsten recycling in fine slime pulp. The device adopted a set of continuous hydraulic classifier and two shaking tables, which met clients’ requirement completely.

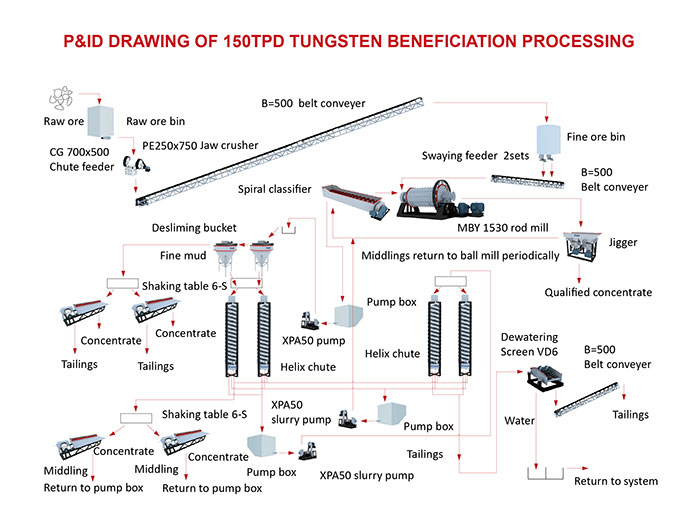

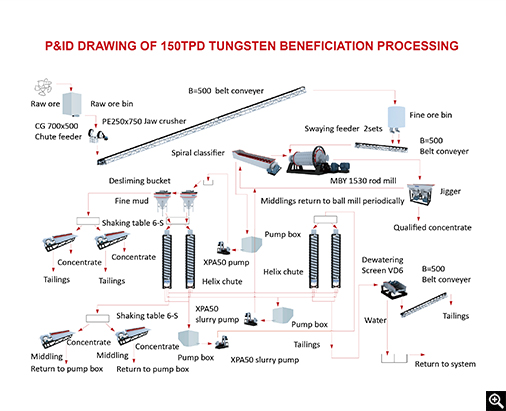

solution flow Visual Relating Image of Equipment

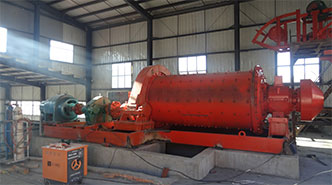

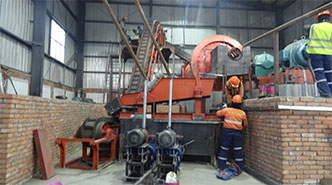

Construction Site1 Construction Site2 Construction Site3 Construction Site4 Construction Site5 Construction Site6
Customers visited Xinhai and construction site

Feedback

"From site inspection to final installation and commissioning, Xinhai accompanied with us along the way, we were so glad that we obtained professional equipment and guidance from Xinhai, the plan designed by Xinhai was also proved to be the most suitable plan for our mineral processing plant."

If you have any questions, please contact us by the following ways, and we will provide you with better help!

Further Reading

In recent years, due to the crash of commodity prices and the sharp decrease of foreign direct investment, the economy of mongolia, with rich mineral resources, suffered a heavy blow. However, according to the Associated Press reports on February 20, 2017, International Monetary Fund (IMF) announced that IMF have come to an agreement on providing $5.5 billion package loan program to mongolia with other partners, China also have joined to $5.5 billion relief program for mongolia, People's Bank of China will renew 15 billion yuan ($2.2 billion) currency swap agreement with Bank of mongolia, the valid for at least three years.

The relief program aims to helping mongolian’s economy back on track, IMF stated, loan agreement means that mongolia must strengthen the banking system and adopt fiscal reform, ensuring rules and regulations that related to budget implemented. Therefore, the future of mongolian mining will be a recovery with good market anticipation.
